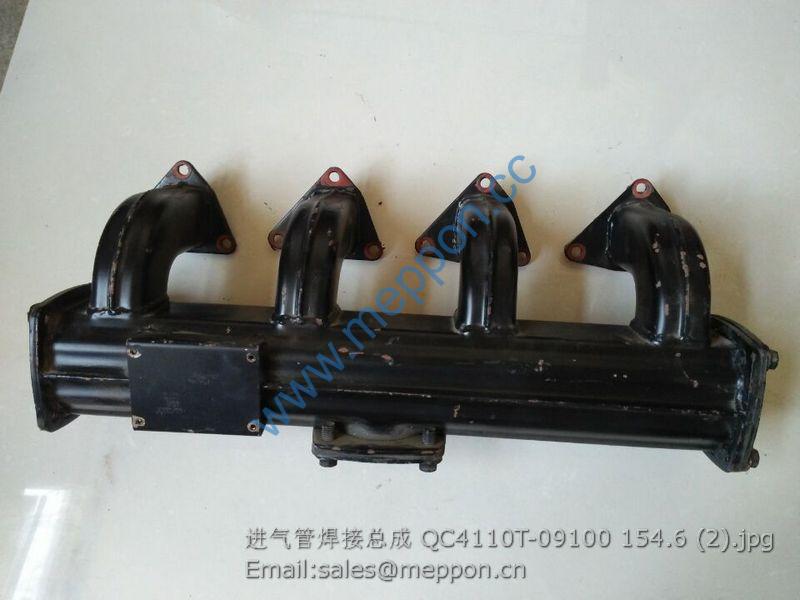

QC4110T-09100 INTAKE PIPE QUANCHAI

1 QC495T45-13-01 10.1-机体总成 CYLINDER BLOCK 1
2 QC495T45-13-10 10.10-气缸盖罩总成 CYLINDER HEAD COVER ASSEMBLY 5
3 QC495T45-13-11 10.11-正时齿轮室总成 TIMING GEAR CASE ASSEMBLY 7
4 QC495T45-13-12 10.12-飞轮壳总成 FLYWHEEL COVER ASSEMBLY 11
5 QC495T45-13-13 10.13-高压油管总成 HIGH PRESSURE OIL PIPE ASSEMBLY 13
6 QC495T45-13-14 10.14-机油泵总成 OIL PUMP ASSEMBLY 15
7 QC495T45-13-15 10.15-呼吸器总成 BREATH ASSEMBLY 17
8 QC495T45-13-16 10.16-机油管路总成 OIL CIRCUIT ASSEMBLY 19
9 QC495T45-13-17 10.17-水泵风扇总成-17 WATER PUMP AND FAN ASSEMBLY-17 21
10 QC495T45-13-18 10.18-喷油泵 OIL INJECTION PUMP 23
11 QC495T45-13-19 10.19-发电机总成 ALTERNATOR ASSY 25
12 QC495T45-13-02 10.2-正时齿轮传动系总成 TIMING GEAR ASSEMBLY-2 27
13 QC495T45-13-20 10.20-燃油供给总成-20 FUEL SUPPLY SYSTEM ASSEMBLY 29
14 QC495T45-13-21 10.21-喷油器总成 FUEL INJECTOR ASSEMBLY 31
15 QC495T45-13-22 10.22-机油滤清器总成 OIL FILTER ASSEMBLY 33
16 QC495T45-13-23 10.23-燃油滤清器总成-23 FUEL FILTER ASSEMBLY-23 35
17 QC495T45-13-24 10.24-起动电机总成 STARTING MOTOR ASSEMBLY 37
18 QC495T45-13-03 10.3-气缸盖总成 CYLINDER HEAD ASSY 39
19 QC495T45-13-04 10.4-活塞、连杆总成 PISTONS & CONNECTING RODS 43
20 QC495T45-13-05 10.5-曲轴、飞轮总成 CRANKSHAFT FLYWHEEL ASSEMBLY 45
21 QC495T45-13-06 10.6-凸轮轴总成 CAMSHAFT ASSY 47
22 QC495T45-13-07 10.7-油底壳总成 OIL SUMP ASSEMBLY 49
23 QC495T45-13-08 10.8-排气管总成-8 EXHAUST PIPE ASSEMBLY-8 51
24 QC495T45-13-09 10.9-进气管总成-9 INTAKE PIPE ASSEMBLY-9 53
25 TB400.11 11-空气滤清系总成 11-AIR CLEANER ASSEMBLY 55

26 TB500.13D 13-冷却系总成 13-COOLING SYSTEM ASSEMBLY 57
27 TB400.201F 20.1-手油门总成 20.1-HAND THROTTLE ASSEMBLY 59
28 TB400.202F 20.2-脚油门总成 20.2-FOOT THRORRLE ASSEMBLY 61
29 TB400.203B 20.3-拉线总成 20.3-PULL WIRE ASSEMBLY 63
30 TB550.211 21.1-离合器总成 21.1-CLUTCH ASSEMBLY 65
31 TB504.212 21.2-离合器操纵机构总成 21.2-CLUTCH CONTROL MECHANISM ASSEMBLY 67
32 TC02311020000-1 31.1-前驱动桥总成 31.1-FRONT DRIVING AXLE ASSEMBLY 69
33 TB504.311-1 31.1.1-前驱动桥总成-1 FRONT DRIVING AXLE ASSEMBLY-1 71
34 TB504.311-2 31.1.2-前驱动桥总成-2 FRONT DRIVING AXLE ASSEMBLY-2 73
35 TB504.311-3 31.1.3-前驱动桥总成-3 FRONT DRIVING AXLE ASSEMBLY-3 77
36 TB504.311-4 31.1.4-前驱动桥总成-4 FRONT DRIVING AXLE ASSEMBLY-4 81
37 TB504.311-5 31.1.5-前驱动桥总成-5 FRONT DRIVING AXLE ASSEMBLY-5 85
38 TB504.311-6 31.1.6-前驱动桥总成-6 FRONT DRIVING AXLE ASSEMBLY-6 89
39 TB554.312 31.2-前托架总成 31.2-FRONT BRACKET ASSEMBLY 91
40 TC02311020000-2 31.2-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY 93
41 TC02311020000-3 31.3-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY 95
42 TC02311020000-4 31.4-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY 97
43 TC02311020000-5 31.5-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY 99
44 TC02311020000-6 31.6-前驱动桥总成 FRONT DRIVING AXLE ASSEMBLY 101
45 FT404.32F.001 32-前驱动轮总成 32-FRONT DRIVING WHEEL ASSEMBLY 103
46 TB300.35A 35-牵引机构总成 35-TOWING MECHANISM ASSEMBLY 105
47 TB400.371 37.1-变速箱壳体总成 37.1-GEARBOX HOUSING ASSEMBLY 107
48 TB450.372B-1 37.2.1-主变速总成-1 MAIN TRANSMISSION ASSEMBLY-1 109
49 TB450.372B-2 37.2.2-主变速总成-2 MAIN TRANSMISSION ASSEMBLY-2 113
50 TB450.374C-1 37.4-变速箱操纵机构总成 37.4-GEARBOX CONTROL MECHANISM ASSEMBLY 115

51 TB450.374C-2 37.4.2变速箱操纵机构总成-2 GEARBOX CONTROL MECHANISM ASSEMBLY-2 117
52 TB404.382B-1 38.2.1-后桥中央传动总成-1 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1 121
53 TB404.382B-2 38.2.2-后桥中央传动总成-2 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2 123
54 TB554.383A 38.3-差速锁操纵机构总成 38.3-DIFFERENTIAL LOCK CONTROL MECHANISM 125
55 FT300.39.001-1 39.1-最终传动总成-1 39FINAL TRANSMISSION ASSEMBLY -1 127
56 FT300.39.001-2 39.2-最终传动总成-2 39FINAL TRANSMISSION ASSEMBLY -2 131
57 TB504.402B-1 40.1-全液压转向管路总成-1 FULL HYDRAULIC STEERING PIPE ASSEMBLY-1 135
58 TB504.401B 40.1-转向器及转向管柱总成 40.1-REDIRECTOR OR STEERING COLUMN ASSEMBLY 139
59 TB504.402B-2 40.2-全液压转向管路总成-2 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2 141
60 TB504.402J-1 40.21-全液压转向总成 FULLY HYDRAULIC STEERING ASSEMBLY 143
61 TB504.402J-2 40.22-全液压转向总成 FULLY HYDRAULIC STEERING ASSEMBLY 147
62 TB400.411D 41.1-动力输出齿轮总成 41.1-PTO GEAR ASSEMBLY 149
63 TB550.412A 41.2-动力输出轴总成 41.2-PTO SHAFT ASSEMBLY 153
64 TB550.413D 41.3-动力输出操纵总成 41.3-PTO CONTROL ASSEMBLY 155
65 TB554.421C 42.1-分动箱箱体总成 42.1-TRANSFER CASE HOUSING ASSEMBLY 159
66 TB454.422 42.2-分动箱传动总成 42.2-TRANSFER CASE TRANSMISSION ASSEMBLY 163
67 TB554.423C 42.3-分动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY 165
68 TB504.431 43.1-左制动器总成 43.1-LEFT BRAKE ASSEMBLY 167
69 TB504.432 43.2-右制动器总成 43.2-RIGHT BRAKE ASSEMBLY 169
70 TB504.433-1 43.3.1-制动器操纵机构总成-1 BRAKE CONTROL MECHANISM ASSEMBLY-1 171
71 TB504.433-2 43.3.2-制动器操纵机构总成-2 BRAKE CONTROL MECHANISM ASSEMBLY-2 173
72 TB400.44G 44-座椅安装总成 44SEAT INSTALLATION ASSEMBLY 177
73 TB554.452A 45.2-地板总成 45.2-FLOOR ASSEMBLY 179
74 TB554.452A-1 45.2.1-地板总成-1 FLOOR ASSEMBLY-1 181
75 TB554.452A-2 45.2.2-地板总成-2 FLOOR ASSEMBLY-2 183

76 TB554.452A-3 45.2.3–地板总成-3 FLOOR ASSEMBLY-3 185
77 TB400.457B 45.7-前连接总成 45.7-FRONT CONNECTING ASSEMBLY 187
78 TB400.46H 46-安全架安装总成 46-SAFETY FRAME INSTALLATION ASSEMBLY 189
79 TC02471050000K 47.1-机罩总成 47.1-BONNET ASSEMBLY 193
80 TB400B.473 47.3-机罩锁紧装置总成 47.3-BONNET LOCKING DEVICE ASSEMBLY 195
81 TB550.477E 47.7-机罩加长板总成 47.7-BONNET EXTENSION PLATE ASSEMBLY 197
82 TB450.481F 48.1-发动机线束安装总成 48.1-ENGINE HARNESS INSTALLATION ASSEMBLY 199
83 TB450.482H 48.2-车身线束安装总成 48.2-BODY HARNESS INSTALLATION ASSEMBLY 201
84 TB450.483B 48.3-前灯线束安装总成 48.3-FRONT LAMP HARNESS INSTALLATION 203
85 TB500.484C 48.4-后灯线束安装总成 48.4-REAR LAMP HARNESS INSTALLATION ASSEMBLY 205
86 TB450.485A 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY 209
87 TB400.487 48.7-组合仪表总成 48.7-COMBINED INSTRUMENT ASSEMBLY 211
88 TB400.49 49-工具箱总成 49-TOOL BOX ASSEMBLY 213
89 TB400.50X 50-燃油箱装配总成 50-FUEL TANK INSTAllation assembly 215
90 FT300.53.001 53-拖挂装置总成 53-TOW EQUIPMENT ASSEMBLY 217
91 TB504.551A 55.1-提升器装配总成 55.1-LIFTER INSTALLATION ASSEMBLY 219
92 TB504.551A-1 55.1-提升器装配总成-1 LIFTER INSTALLATION ASSEMBLY-7-1 221
93 TB504.552C 55.2-提升器操纵机构总成 55.2-LIFTER CONTROL MECHANISM ASSEMBLY 225
94 TB504.551A-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2 229
95 TB504.551A-3 55.3-提升器装配总成-3 LIFTER INSTALLATION ASSEMBLY-7-3 231
96 TB504.551A-4 55.4-提升器装配总成-4 LIFTER INSTALLATION ASSEMBLY-4 235
97 TB504.551A-5 55.5-提升器装配总成-5 LIFTER INSTALLATION ASSEMBLY-5 237
98 TB504.551A-6 55.6-提升器装配总成-6 LIFT ASSEMBLY-6 241
99 TB504.551A-7 55.7-提升器装配总成-7 LIFT ASSEMBLY-7 243
100 FT500A.56B.001-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1 247

101 FT500A.56B.001-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2 251
102 FT454.58J.001 58-油泵油管总成 253
103 TB504.582C 58.2-多路阀操纵机构总成 58.2-MULTI-WAY VALVE CONTROL MECHANISM 255
104 TB504.582C-1 58.2.1-多路阀操纵机构总成-1 MULTI-WAY VALVE CONTROL MECHANISM 257
105 TB504.582C-2 58.2.2-多路阀操纵机构总成-2 MULTI-WAY VALVE CONTROL MECHANISM 259
106 TB504.582C-3 58.2.3-多路阀操纵机构总成-3 MULTI-WAY VALVE CONTROL MECHANISM 261
107 TB300.583A 58.3-单路液压输出总成2 58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2 265
