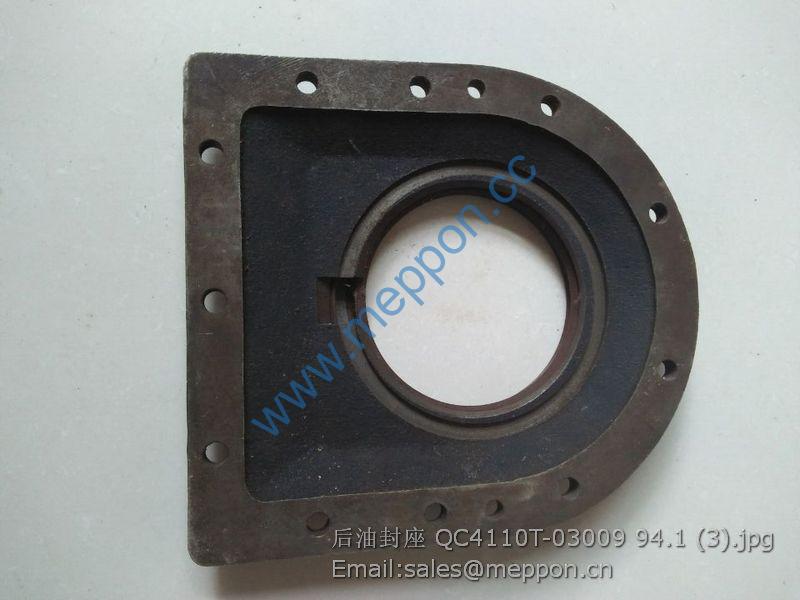

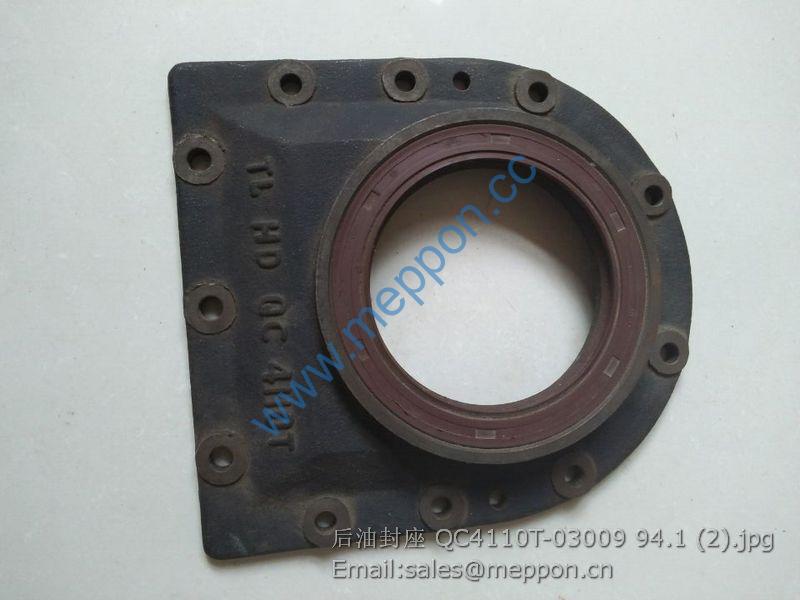

QC4110T-03009 REAR OIL SEAL COVER QUANCHAI

TS04471010000K Bonnet Assembly 1
1 TS04471012001 Bonnet Upper Cover Plate 1
2 TS04471010007 Front Shock Absorbing Strip 1
3 TS04471010004 Middle Shock Absorbing Strip 2
4 TS04471010008 Rear Shock Absorbing Strip 1
5 TS04471010001 Bonnet Rear Seal Strip 1
6 TS04471021000 Bonnet Welding Assembly 1
7 TS04471010002 Front Lower Buffer Strip 1
8 TS04471010009 Bonnet Right Rear Seal Strip 1
9 TS04471014000K Bonnet Lower Side Plate Assembly 1
10 TS06471010005 Rubber Plug 2
11 TS04471010006K Bonnet Left Rear Seal Strip 1

TS04471010000K Bonnet Assembly 1
1 TS04471019000 Bonnet Air Spring Assembly 2
2 TS04471012004 Upper Support Plate Of Right Mesh Plate 1
3 TS04471012005 Lower Support Plate Of Right Mesh Plate 1
4 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 18
5 GBT97.1-6-A0P Plain Washer 36
6 GBT93-6-A0P Standard Spring Washer 18
7 GBT6170-M6-8-A2L Hexagon Nut, Style 1 18
8 TS04471010003 Bonnet Front Handle 1
9 TD800.471A-05 Bonnet Front Handle Washer 2
10 TS04471012002 Upper Support Plate Of Left Mesh Plate 1
11 TS04471012003 Lower Support Plate Of Left Mesh Plate 1
12 GBT97.1-12-A0P Plain Washer 5
13 GBT93-12-A0P Standard Spring Washer 5
14 GBT6170-M12-8-A3L Hexagon Nut, Style 1 2
15 TS04471013000 Bonnet Hinge Chain Assembly 1
15.1 GBT91-5X32-A0P Split Pin 2
15.2 GBT97.1-16-A0P Plain Washer 2
15.3 FT800B.47B.161 Hinge Chain Upper Seat 2
15.4 GBT882-B16X90-A0P Pivot 2
15.5 TS04471013001 Bonnet Lower Bracket Weldment 1
15.6 GBT6170-M8-8-A2L Hexagon Nut, Style 1 2
15.7 GBT5783-M8X50-8.8-A2L Hexagon Head Bolt 2
16 GBT97.1-10-A0P Plain Washer 6
17 GBT93-10-A0P Standard Spring Washer 6
18 GBT5783-M10X35-8.8-A3L Hexagon Head Bolt 6
19 GBT5783-M12X35-8.8-A3L Hexagon Head Bolt 3

TS04471010000k Bonnet Assembly 1
1 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 14
2 GBT96.1-8-A0P Large Washer 6
3 TS06471014003 Process Hole Plug 4
4 TS04471024200 Right Lower Side Plate Weldment 1
5 TS06471014002 Rubber Sleeve 4
6 TS04471014004 Right Rear Lower Fixing Seat Weldment 1
7 GBT97.1-8-A0P Plain Washer 12
8 GBT93-8-A0P Standard Spring Washer 14
9 TS04471014003 Right Rear Upper Fixing Seat Weldment 1
10 GBT6170-M8-8-A2L Hexagon Nut, Style 1 4
11 TS04471014001 Left Rear Upper Fixing Seat Weldment 1
12 TS04471014002 Left Rear Lower Fixing Seat Weldment 1
13 TS04471014100K Left Lower Side Plate Weldment 1

TS04473010000 Bonnet Lock Mechanism Assembly 1
1 TB450.473-02 Rubber Ring 1
2 TS06473010005 Pull Rod 1
3 TS06473010002 Bonnet Lock 1
4 GBT97.1-8-A0P Flat Washer 3
5 GBT93-8-A0P Standard Spring Washer 5
6 GBT5783-M8X25-8.8-A2L Hex Bolt 3
7 TS04473010001 Bonnet Lock Column Weldment 1
8 GBT6170-M8-8-A2L Type 1 Hex Nut 2
9 GBT96.1-8-A0P Bit Washer 2
