Description

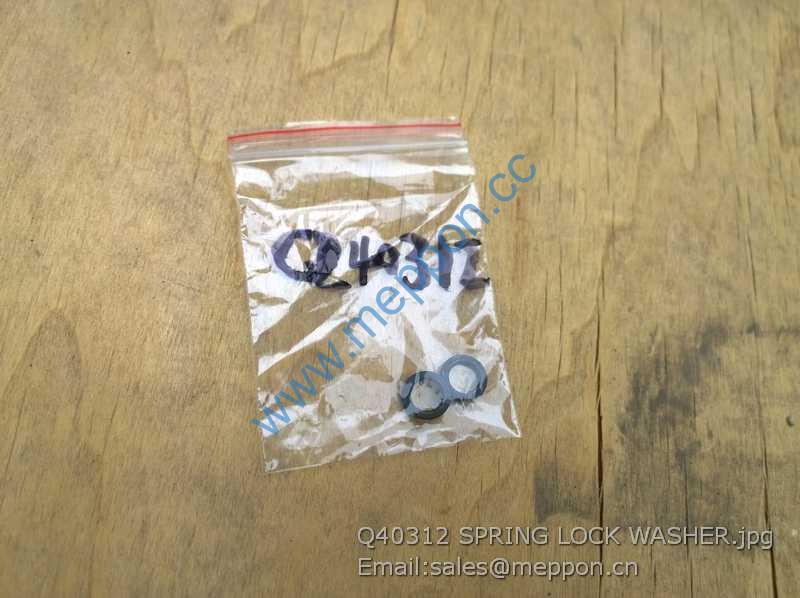

Q40312 SPRING LOCK WASHER

J5600-1008250A 排气管垫片组件 Exhaust pipe gasket subassembly 6 易损件 EWP
2 J5600-1008217A 排气支管 Exhaust manifold 2
3 J5600-1008026 螺栓套 Bolt sleeve 20
4 Q1841075TF2 螺栓 M10×75 Bolt M10×75 20
5 J62AA-1008214A 后排气管罩 Rear exhaust pipe cover 1
6 Q1840812 螺栓 M8×12 Bolt M8×12 8
7 Q1841025TF2 螺栓 M10×25 Bolt M10×25 2
8 J62AA-1008218A 排气中间管 Exhaust intermediate pipe 1
9 J62AA-1008213B 前排气管罩 Front exhaust pipe cover 1
10 L3000-1008025 密封环 Seal ring 4
11 Q1841045TF2 螺栓 M10×45 Bolt M10×45 2
12 J65D1-1008226 螺栓套 Bolt sleeve 2

Q/YC1820820 螺栓 M8X20 Bolt M8X20 26
2 Q40308 垫圈 8 Washer 8 30
3 6105Q-3509013 垫圈 Washer 30
4 6105Q-1009032A 放油塞磁铁 Oil drainage magnet 1
5 Q/YC149-27 复合式密封垫圈 27 Seal washer 27 1 易损件 EWP
6 6105Q-1009031C 放油塞 Oil drainage 1
7 Q/YC1820816 螺栓 M8X16 Bolt M8X16 4
8 A30-1009040C 油底壳组件 Oil sump subassembly 1
9 J3200-1009012 油底壳垫片 Oil sump gasket 1 易损件 EWP

6105QA-1010110A 垫片结合件 Assembled washer 1 易损件 EWP
2 Q150B0816TF2 螺栓 M8X16 Bolt M8X16 2
3 Q40308 垫圈 8 Washer 8 4
4 Q40108 垫圈 8 Washer 8 4
5 Q150B0875TF2 螺栓 M8X75 Bolt 2
6 A30-1010120C 进油管焊接件 Oil inlet pipe weldment unit 1
7 6105QA-1010130B 滤网总成 Screener assembly 1 易损件 EWP

A30-1011013 机油泵中间齿轮轴 Oil pump driven gear shaft 1
2
430-1011014
垫圈-中间传动齿轮
Washer-middle transmission
gear
1
3
GB/T276-6203
滚动轴承 6203
Washer-middle transmission
gear
2 易损件 EWP
4 Q43040 挡圈 40 Retaining ring 40 1
5 430-1011011 机油泵中间齿轮 Oil pump middle gear 1
6 Q150B1050TF2 螺栓 M10X50 Bolt 2
7 Q40310 垫圈 10 Lock Washer 10 3
8 Q40110 垫圈 10 Lock Washer 10 3
9 6105QA-1010110A 垫片结合件 Assembled washer 2 易损件 EWP
10 Q40108 垫圈 8 Washer 8 4
11 Q40308 垫圈 8 Washer 8 4
12 Q218B0825TF2 螺钉 M8X25 Bolt 4
13 A30-1011050 机油出油管焊接件 Oil outlet pipe weldment 1
14 A30-1011020A 机油泵 Oil pump 1
15 6105Q-1011015A 机油泵调整垫片 Oil pump adjusting washer 适量 Proper amount 易损件 EWP
16 Q351B10 螺母 M10X1 Nut 1
17 430-1011012 间隔垫 Spacer 1
