Description

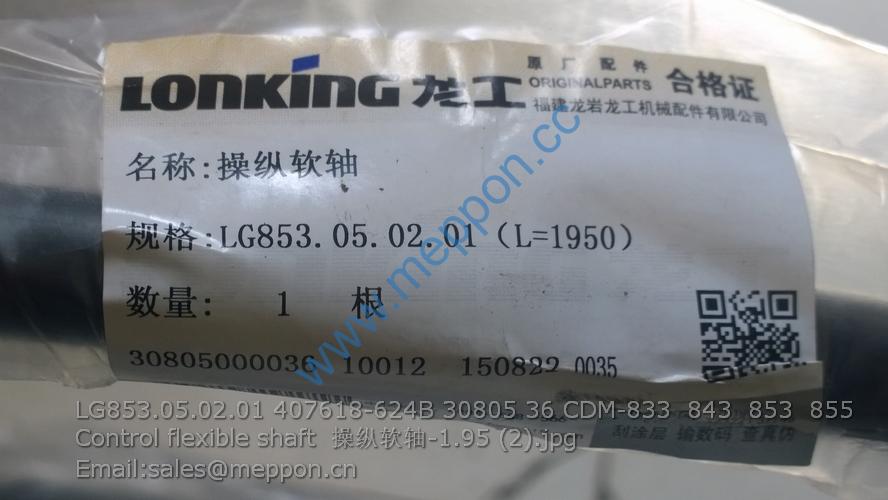

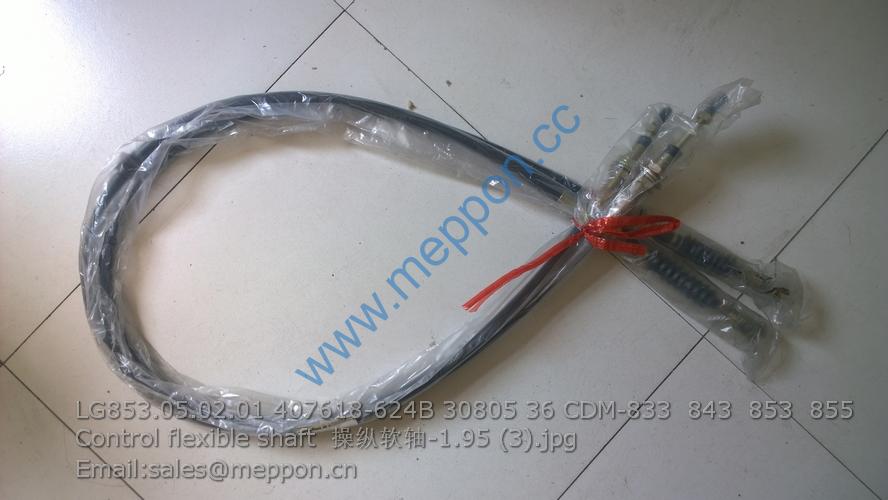

LG853.05.02.01 407618-624B 30805 36 CDM-833 843 853 855 Control flexible shaft

1 Q150B1060TF2 螺栓 M10X60 Bolt M10X60 4
2 Q40310 垫圈 10 Washer 10 4
3 Q40110 垫圈 10 Washer 10 4
4 640-1005031A 曲轴-冷却器皮带轮 Crankshaft-cooler belt pulley 1
5 6105QA-1005052 起动爪 Starting dog 1
6 J8000-1005030A 皮带轮减振器组件 Belt pulley vibration damper subassembly 1
7 6105Q-1005021 曲轴正时齿轮 Crankshaft timing gear 1
8 Q5511270 键 12X70 Key 1
9 630-1005020E 曲轴 Crankshaft 1
10 6105Q-1005054C*-H 曲轴轴瓦组件(红) Crankshaft bearing shell subassembly (red) 1
6105Q-1005054C*-L 曲轴轴瓦组件(蓝) Crankshaft bearing shell subassembly (blue) 1
6105Q-1005056A 上轴瓦（宽） Upper bearing shell(wide) 1
11 6105Q-1005058A 曲轴止推片 Crankshaft thrusting piece 4
12 6105Q-1005057C 下轴瓦（宽） Lower bearing shell (wide) 1
13 6105Q-1005054A 上轴瓦（窄） Upper bearing shell(narrow) 6
14 6105Q-1005055C 下轴瓦（窄） Lower bearing shell(narrow) 6
15 YC24-B1226 圆柱销 12X26 Straight pin 1

1 GB/T1096-C0828 键 C8×28 Key C8×28 1
2 630-1006015A 凸轮轴 Camshaft 1
3 Q150B1238TF2 螺栓 M12×38 Bolt M12×38 1
4 Q40312 垫圈 12 Washer 12 1
5 630-1006019 垫圈 Washer 1
6 6105Q-1006021 凸轮轴正时齿轮 Camshaft timing gear 1
7 Q/YC1820820TF2 螺栓 M8×20 Bolt M8×20 2
8 Q40308 垫圈 8 Washer 8 2
9 6105Q-1006016 凸轮轴止推片 Camshaft thrust plane 1
10 6105Q-1006017 隔圈—凸轮轴正时齿轮 Spacer-camshaft timing gear 1

1 J3000-1003103A 排气门 Exhaust valve 6
2 D30-1003111B 进气门 Intake valve 6
3 150-1007021E 气门锁夹 Valve stem locks 24
4 D30-1003116 气门弹簧上座 Valve spring seat(upper) 12
5 430-1007016A 气门杆油封 Valve stem seal 12
6 6105Q-1007023 气门内弹簧 Valve inner spring 12
7 6105Q-1007022 气门外弹簧 Valve outer spring 12
8 6105Q-1007091A 挺杆 Tappet 12
9 6105QA-1007081B 推杆 Push rod 12
10 A3000-1007074 通油管焊接件 Oil pipe weldments 2
11 Q/YC149-8 复合式密封垫圈 8 Compound seal washer8 8
12 6105Q-1007073 接头螺栓 Joint bolt 4
13 Q350B12 螺母 M12 Nut M12 6
14 Q340B12 螺母 M12 Nut M12 6
15 A30-1007092 垫圈 Washer 6
16 6105QA-1007035A 摇臂轴座固定螺柱 Fixing stud, rocker-arm shaft seat 6
17 J3100-1007100A 摇臂轴部件 Rocker arm shaft part 2
