Description

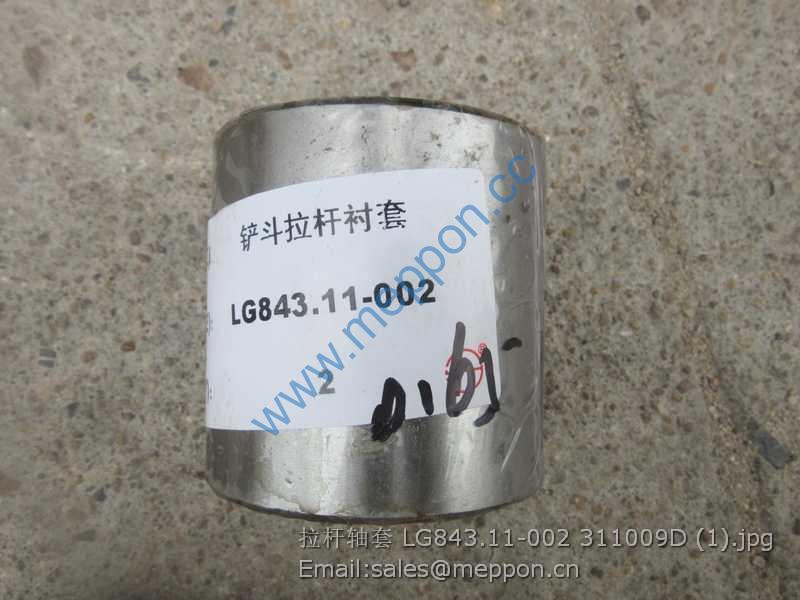

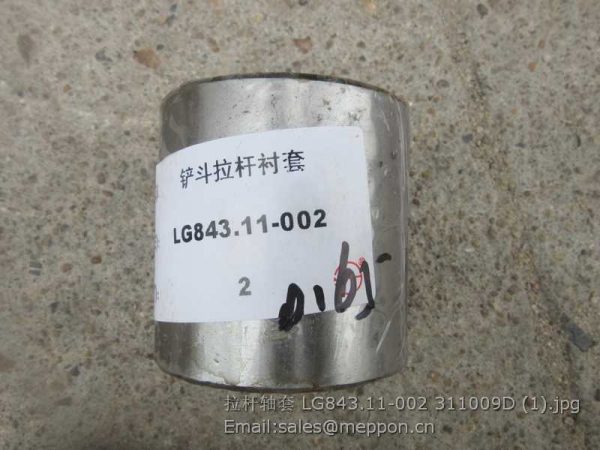

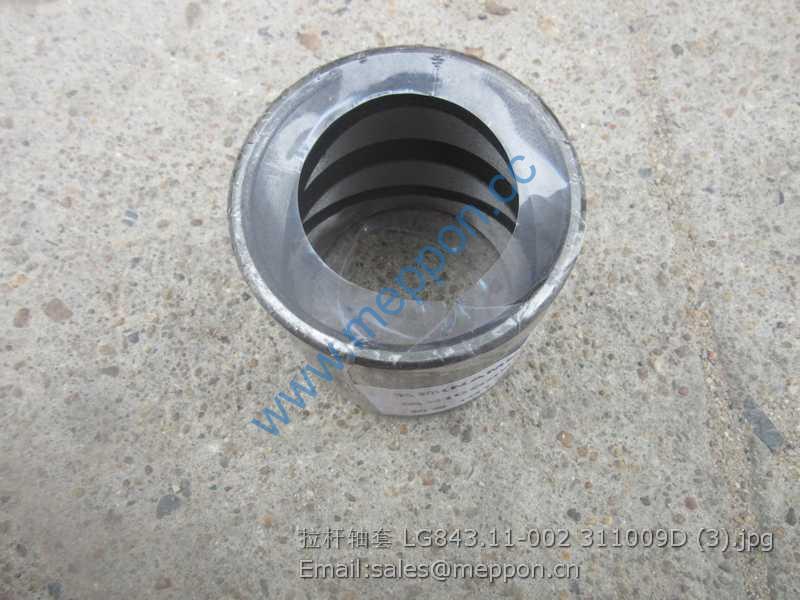

LG843.11-002 311009D BUSHING FOR LONKING WHEEL LOADER

水冷空压机 Air compressor assembly VG1560130080A 1
2 六角头螺栓 Hex head bolt 90003802443 7
3 波形弹簧垫圈 Wave spring washer 90003932023 7
4 喷油泵齿轮 Injection pump gear VG1560130064 1
5 六角螺母 Hexagon nut VG2600130045 1
6 垫片 Washer VG409020045 1
7 空压机进水管 Hose VG1560060019 1
8 空心螺栓 Bolt VG2600130053 1
9 空压机出水管 Hose VG1560060018 1
10 软管卡箍 Hose clamp 90003989336 4
11 水冷空压机水管接头 Pipe connection VG2600130026 1
12 空压机进气管接头 Intake pipe connector VG1560130035 1
13 六角螺母 Hexagon nut 90003559778 1
14 过渡接头 Transition joint VG1560070051 2
15 复合密封垫圈 Washer VG9003080003 7
16 空压机进水管接头 Water inlet connector VG1560060012 1
17 六角薄螺母 Nut Q351B15 1

油底壳总成 Oil pan HG1500159678 1
2 密封垫 Joint VG14150004 1
3 磁性螺塞总成 Plug VG2600150108 1
4 密封垫圈 Washer VG2600150106 1
5 油底壳托块 Holding piece VG14150046 12
6 六角头螺栓 Bolt 90003802442 12
7 平垫圈 Washer 90003930261 12
8 波形弹性垫圈 Wave spring washer 90003932023 12

气缸体总成 Cylinder block ass AZ1096010195 1 1
1 气缸体 Cylinder block R61540010018A/1 1 1
2 曲轴箱 Crankcase 61500010366C/1 1 1
3 油泵托架 Bracket VG1540010019 1 1
4 凸轮轴衬套 Bush VG1560010029 6 6
5 凸轮轴衬套 Bush VG2600010990 1 1
6 碗形塞 17×7.3 Core plug 90003984080 1 1
7 碗形塞 17×8 Core plug 90003989480 1 1
8 碗形塞 28×12 Core plug 90003989204 1 1
9 碗形塞 40×12 Core plug 90003989289 4 4
10 碗形塞 45×12 Core plug 90003982121 4 4
11 碗形塞 45×12 Core plug 90003989215 4 4
12 碗形塞 65×14 Core plug 90003989288 1 1
13 碗形塞 75×14 Core plug 90003989210 9 9
14 水冷空压机水管接头 Connecting piece VG2600130026 1 1
15 回油弯管 Pipe VG2600070097 1 1
16 圆柱销 Dowel pin 90003901604A 2 2
17 圆柱销 Dowel pin Q5211220 1 1
18 圆柱销 Dowel pin Q5211216 2 2
19 六角头螺栓 Bolt 90003802650 2 2
20 六角头螺栓 Bolt 90011350045 2 2
21 弹簧垫圈 Spring washer 90003931142 4 4

主轴承螺栓 Bolt VG14010114 13 13
主轴承螺栓 Bolt VG14010217 1 1
23 气缸盖螺栓 Stud VG1500010185 21 21
24 六角头螺栓 Bolt 90003802493 27 27
25 密封圈 Gasket VG1400010032 2 2
26 圆柱销 Dowel pin 190003901604 6 6
27 主油道后螺塞 Bolt VG1460070011 1 1
28 弹性圆柱销 Spring dowel pin 90003909626 6 6
29 六角头螺塞 Bolt 90003962051 1 1
30 气缸套 Liner VG1540010006 6 6
31 主轴瓦付(上瓦) Main bearing upper half VG1540010021 7 7
32 主轴瓦付(下瓦) Main bearing upper half VG1540010022 7 7
34 止推片付 Thrust bearing VG1500010125 2 2
35 机油喷嘴组件 Spraying nozzle assembly VG1560019090 6 6
38 弹性圆柱销 Spring dowel pin 90003909603 6 6
39 空心螺栓 Bolt 90003962621 6 6
40 复合密封垫圈 Gasket VG9003080001 6 6
41 前油封 Front gasket VG1047010038 1 1
44 后油封总成 Back gasket VG1047010050 1 1
46 单缸空压机正时齿轮室 Gear case R61540010009 1 1
47 六角头螺栓 Bolt 90003802523 3 3
48 六角头螺栓 Bolt 90003802561 6 6
