Description

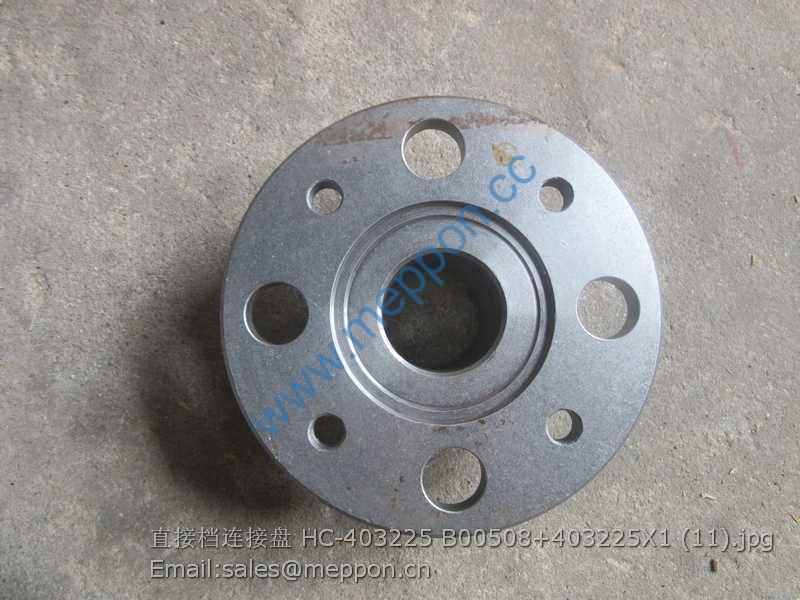

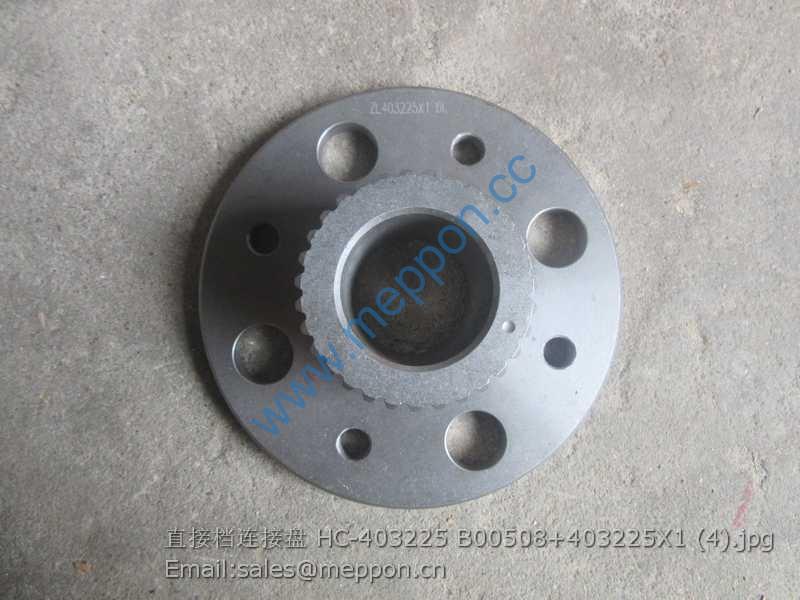

HC-403225 B00508+403225X1 Connection plate 4110000184079 LG853.03.01.02-014 52A0186 4110000184188

228700169 油塞 Plug 2
805300055 垫圈30 Washer 4 JB/T982-1977
239900236 透气塞 plug 1
801101755 加油管 Pipe 2
805000017 螺栓M8×25 Bolt 2 GB/T5783-2000
228700167 视油螺塞 Oil level glass 2
801902797 减振块 Shock absorber 12 YLJ-16A
227000279 压轮 Drum 1
226801653 轴承盖 Bearing Cover 1
227001357 安装板 Mounting Plate 2
805001925 螺栓M16×45 Bolt 40 GB/T5782-2000
805301377 垫圈16 Washer 48 DIN6796
227000125 左偏心轴 Eccentricity shaft 1
228300483 内轴承座 Bearing housing 2
800511396 振动轴承NJ322 Drum bearing 4 GB/T283-1994
228700161 传动轴 Transmission shaft 1
228700157 橡胶套 Rubber sleeve 2
227000126 右偏心轴 Eccentricity shaft 1
227001358 外轴承座 Bearing housing right 2
226801655 框架轴承座 Frame bearing set 2
805000082 螺栓M16×70 Bolt 16 GB/T5782-2000
805200200 螺母M16 Nut 16 GB/T889.1-2000

226801657 马达连接盘 Motor bracket 1
805000264 螺栓M12×90 Bolt 15 GB/T5782-2000
805301285 垫圈12 Washer 15 GB/T93-1987
805000404 螺栓M12×45 Bolt 8 GB/T5783-2000
805301374 碟垫12 Washer 16
226801658 压板 Cover plate 1
803164181 O型圈200×7 O-ring 2 GB/T3452.1-1992
227001359 花键套 Spline sleeve 1
800511355 轴承2097724 Drum bearing 2 GB/T299-1995
803164194 骨架油封FB180×220×18 Seal 2 GB13871-1992
803164151 O型圈387×7 O-ring 2 GB/T3452.1-1992
805000404 螺栓M12×45 Bolt 48 GB/T5782-2000
805200098 螺母M12 Nut 48 GB/T889.1-2000
805301374 垫圈12 Washer 48 DIN6796
805000716 螺栓M12×30 Bolt 8 GB/T5783-2000
226801659 压板 Cover plate 1
859915662 油封FB140×170×16 Seal 1 GB/T9877-1992
805000023 螺栓M12×50 Bolt 48 GB/T5783-2000
805301374 垫圈12 Washer 48 DIN6796
805200098 螺母M12 Nut 48 GB/T889.1-2000
228300479 调整垫 Shim 4

805000078 螺栓M24×120 Bolt 8 GB/T5782-2000
805300148 垫圈24 Washer 12 GB/T97.2-2002
805200194 螺母M24 Nut 8 GB/T889.1-2000
227000133 减振器支座 Torque reducer support 2
805002089 螺栓M24×30 Bolt 4 GB/T5783-2000
226800413 凸块壳 Cam 3
805001990 螺栓M24×130 Bolt 18 GB/T5782-2000
805201509 螺母M24 Nut 18 GB/T889.1-2000
805301380 垫圈24 Washer 18 DIN6796
226800417 安装夹板 Assemble plate 12
805000186 螺栓M18×50 Bolt 12 GB/T5783-2000
