Description

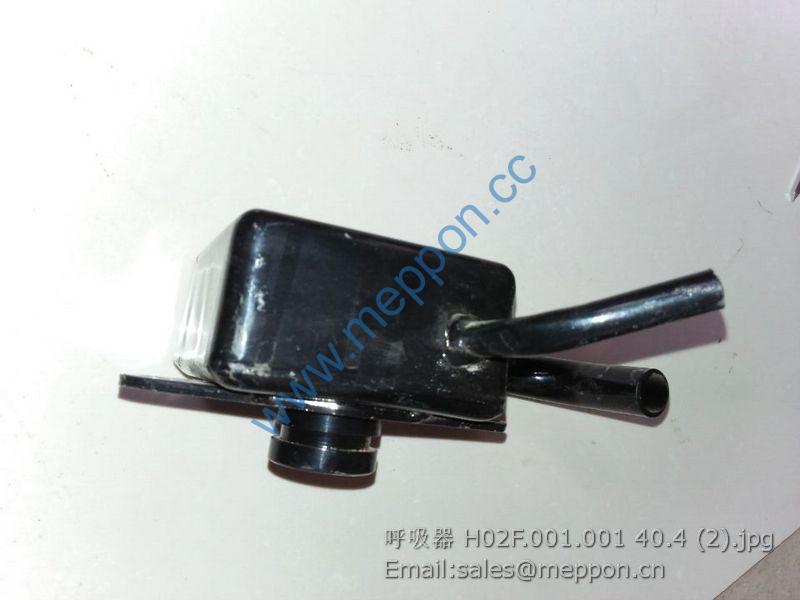

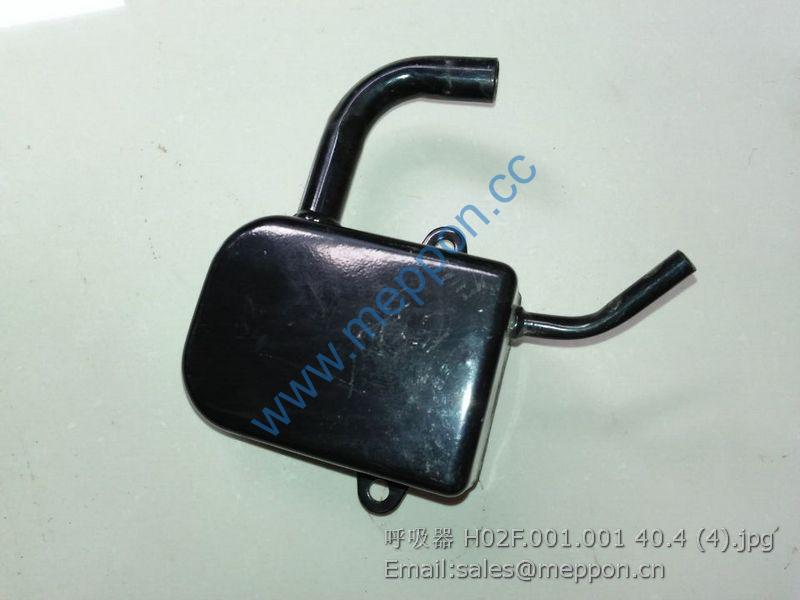

H02F.001.001 QUANCHAI BREATHER

TS04482010000K Harness Installation Assembly, Body 1
1 TS04482020004 Armrest Lamp Assembly 2
2 GBT818-M3X20-4.8-A2L Cross Recessed Pan Head Screw 4
3 GBT93-3-A0P Standard Spring Washer 4
4 GBT97.1-3-A0P Plain Washer 4
5 GBT5783-M6X20-8.8-A2L Hexagon Head Bolt 4
6 FT300.48.055 Starting Relay 1
7 GBT97.1-6-A0P Plain Washer 4
8 GBT93-6-A0P Standard Spring Washer 4
9 GBT6170-M6-8-A2L Hexagon Nut, Style 1 2
10 TS04482010001K Body Harness Assembly 1
11 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 1
12 GBT93-8-A0P Standard Spring Washer 1
13 GBT97.1-8-A0P Plain Washer 1
14 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
15 TS04482010011 Connector Fixing Plate Weldment 1
16 TS04482010006 Two-Function Rocker Switch 1
17 TB550.482.3 Ignition Lock 1
18 TB550.484.2 Brake Lamp Switch 2
19 TS04482010008 Wire Through Ring 1
20 Q67405200 Plastic Fastening Strap 1
21 3203505D9-L Lock Cable Ties 7
22 GBT97.1-5-A0P Plain Washer 2
23 GBT93-5-A0P Standard Spring Washer 2
24 GBT6170-M5-8-A2L Hexagon Nut, Style 1 2

TS04483020000K Harness Installation Assembly, Front Lamp 1
1 TS04483010004 Front Headlamp Assembly 1
2 TS04483010007 Washer 2
3 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 1
4 GBT93-8-A0P Standard Spring Washer 1
5 GBT97.1-8-A0P Plain Washer 1
6 TD800.483B.3 Electric Horn 1
7 TS04483010003 Left Headlamp Assembly 1
8 GBT97.1-6-A0P Plain Washer 8
9 GBT93-6-A0P Standard Spring Washer 8
10 GBT818-M6X20-4.8-A2L Cross Recessed Pan Head Screw 4
11 GBT6170-M6-8-A2L Hexagon Nut, Style 1 4
12 TS04483010001 Front Lamp Harness Assembly 1
13 FT65.48.095 Harness Fastening Clip (1) 7
14 TS04483010005 Decoration Strip 1
15 GBT97.1-5-A0P Plain Washer 2
16 GBT93-5-A0P Standard Spring Washer 2
17 GBT6170-M5-8-A2L Hexagon Nut, Style 1 2

TS04484040000K Harness Installation Assembly, Rear Lamp 1
1 TS04484040001K Rear Lamp Harness Assembly 1
2 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 3
3 GBT93-8-A0P Standard Spring Washer 5
4 GBT97.1-8-A0P Plain Washer 5
5 TS06482010005 Harness Fastener 5
6 TS06484020006 Rear Lamp Assembly 2
7 TD800.484B-03 Wire Through Ring 4
8 TS04484020003 Wire Through Ring 2
9 TS06484010001 Left Rear Taillamp Assembly 1
10 FT65.48.092 Wire Through Ring (3) 2
11 TS04484040003K Five-Function Rocker Switch 1
12 TS04484040002K Central Electric Box Assembly 1
12.1 GE20H16Y.34.6-04 Main Power Source Relay 1
12.2 TC02482010003K Warning Type Fuse (10A) 5
12.3 FT300.48.513 Electronic Flasher 1
12.4 TC02482010007K Warning Type Fuse (7.5A) 3
12.5 TC02482010002K Warning Type Fuse (5A) 5
12.6 TC02482010004K Warning Type Fuse (15A) 6
12.7 FT300.48D.2.2.2 Preheating Relay 1
13 TS06484010002 Right Rear Taillamp Assembly 1
14 GBT5783-M6X20-8.8-A2L Hexagon Head Bolt 10
15 GBT93-6-A0P Standard Spring Washer 14
16 GBT97.1-6-A0P Plain Washer 13
17 TS04484020007 Harness Shield 2 1
18 TS04484020008 Harness Shield 3 1
19 TS06484010005 Retro Reflector 2
20 GBT819.1-M5X35-4.8-A1L Cross Recessed Countersunk Head Screw 3
21 TD900.484.2 Rear Trailer Socket 1
22 TS04484010005 Trailer Socket Fixing Plate Weldment 1
23 GBT97.1-5-A0P Plain Washer 9
24 GBT93-5-A0P Standard Spring Washer 9

25 GBT6170-M5-8-A2L Hexagon Nut, Style 1 6
26 TS04484020002 Wire Through Ring 1
27 TS04484020006 Harness Shield 1 1
28 GBT96.1-6-A0P Large Washer 1
29 TS04481010006 Harness Fastener 1
30 GBT818-M6X25-4.8-A2L Cross Recessed Pan Head Screw 4
31 3203505D9-L Lock Cable Ties 14
32 GBT818-M5X12-4.8-A2L Cross Recessed Pan Head Screw 2
33 TD800.484B.5 Reflector Assembly 2
34 TD800.484B-02 Reflector Installation Plate (Right) 1
35 TD800.484B-01 Reflector Installation Plate (Left) 1
36 FT65.48.093 Wire Through Ring (1) 2
37 TS04486010002K Rotary Warning Lamp Assembly 1
38 TS10484010005 Warning Lamp Bracket Weldment 1
39 GBT5783-M8X70-8.8-A2L Hexagon Head Bolt 2
40 TA700.484A.2.1 License Lamp 1
41 TB500.484A.1 License Lamp Installation Plate Weldment 1

TS04485010000 Battery Installation Assembly 1
1 GBT6170-M6-8-A2L Hexagon Nut, Style 1 4
2 GBT97.1-6-A0P Plain Washer 2
3 TS04485010004 Pressure Plate Welding Assembly 1
4 TS04485010002 Pull Rod 2
5 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 1
6 GBT93-8-A0P Standard Spring Washer 1
7 GBT97.1-8-A0P Plain Washer 1
8 TB400.485A.2 Battery Bonding 1
9 FT450.48.010 Maintenance Free Lead Acid Battery 1
10 TB450.485.1 Battery Shock Absorbing Pad 2
11 TB400.485A.1 Power Source Wire Assembly 1
12 TS04481010006 Harness Fastening Clip 1
13 TD800.485A-04 Harness Fastening Clip 1
14 Q67405100 Plastic Fastening Strap 1
