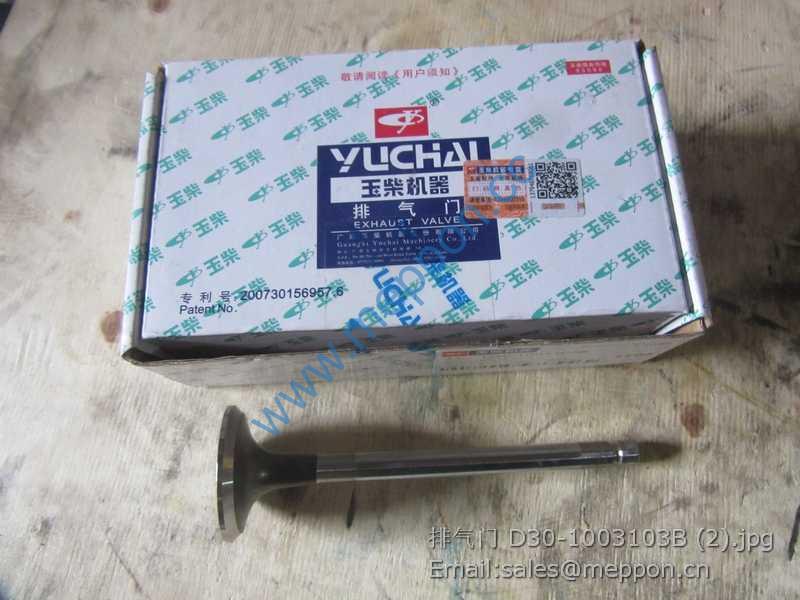

D30-1003103B valve exhaust yuchai

Category:

Description

D30-1003103B valve exhaust yuchai

11 VG1200040023A 5 5 5 5 5 夹紧块 Cylinder head clamp
12 VG1200040034 21 21 21 21 21 带肩螺母 Collar nut
13 VG14040065 6 6 6 6 6 气缸盖罩 Cylinder head cover
14 VG14040021 6 6 6 6 6 气缸盖罩衬垫 Cylinder head cover gasket
15 90003800466 24 24 24 24 24 DIN931-M8×60-8.8-Zn.D 六角头螺栓 Hex head bolt
16 90003932023 24 24 24 24 24 B8 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
17 HG1500040035 1 1 1 1 1 出水管 Water drain pipe
18 HG1500040013 1 1 1 1 1 方头锥形螺塞 Plug
19 Q614B03 1 1 1 1 1 方头锥形螺塞 Plug
20 VG9003080003 1 1 1 1 1 复合密封垫圈 Sealing washer

D1022T2G001 D1022T2G001 D1022T2G002 D1022T2G003 D1022T2G004 D1022T2G005
1 VG1500050097 1 1 1 1 1 凸轮轴总成 Camshaft
1-1 VG1500050096 1 1 1 1 1 凸轮轴 Camshaft
1-2 90003901409 2 2 2 2 2 Q5210814 圆柱销 Straight pin
2 VG1500050105 12 12 12 12 12 气门帽 Valve cap
3 VG14050119 6 6 6 6 6 气门摇臂座 Rocker arm support
4 VG1500050109 12 12 12 12 12 气门弹簧上座 Spring cup
5 VG1560051001 6 6 6 6 6 进气门 Intake valve
6 VG1560050027 6 6 6 6 6 排气门 Exhaust valve
7 VG14050133 1 1 1 1 1 凸轮轴止推片 Thrust flange
8 VG14050053 1 1 1 1 1 凸轮轴正时齿轮 Camshaft gear
9 VG1500050032 12 12 12 12 12 气门挺柱 Valve tappet
10 VG1500050070 12 12 12 12 12 气门推杆总成 Push rod
11 VG1500050002 12 12 12 12 12 气门外弹簧 Outer valve spring
12 VG14050017 6 6 6 6 6 进气门弹簧下座 Spring seat(intake)
13 VG1500050001 12 12 12 12 12 气门内弹簧 Inner valve spring
14 VG1500050025 24 24 24 24 24 气门锁夹 Valve cone
15 VG14050048 6 6 6 6 6 进气门摇臂 Rocker arm (intake)
16 VG14050049 6 6 6 6 6 排气门摇臂 Rocker arm (exhaust)
17 VG14050010 12 12 12 12 12 气门间隙调整螺钉 Bolt
18 VG2130050065 12 12 12 12 12 气门间隙调整螺母 Hexagon nut

D1022T2G001 D1022T2G001 D1022T2G002 D1022T2G003 D1022T2G004 D1022T2G005
19 VG1540059031 1 1 1 1 1 中间齿轮轴 Idle gear axle
20 VG1540059032 1 1 1 1 1 中间齿轮垫片 Gasket
21 VG1560050059 4 4 4 4 4 六角头螺栓 Hex head bolt
22 VG1560050053 1 1 1 1 1 中间齿轮总成 Idle gear
23 VG1560050045 1 1 1 1 1 挡板 Guard plate
24 VG1560050046A 1 1 1 1 1 盖板 Cover
25 90003802399 2 2 2 2 2 DIN933-M8×16-10.9 六角头螺栓 Hex head bolt
26 90003802443 4 4 4 4 4 DIN933-M8×20-10.9 六角头螺栓 Hex head bolt
27 90003802655 12 12 12 12 12 DIN933-M12×60-10.9 六角头螺栓 Hex head bolt
28 90003120602 1 1 1 1 1 密封圈 Sealing ring
29 90003802411 2 2 2 2 2 六角头螺栓 Hex head bolt
30 90003862419 1 1 1 1 1 DIN912-M8×16-8.8-Zn.D 内六角圆柱头螺钉 Socket cap screw
31 90003932023 3 3 3 3 3 DIN137-B8-Zn.D 波形弹簧垫圈 Wave spring washer
