Description

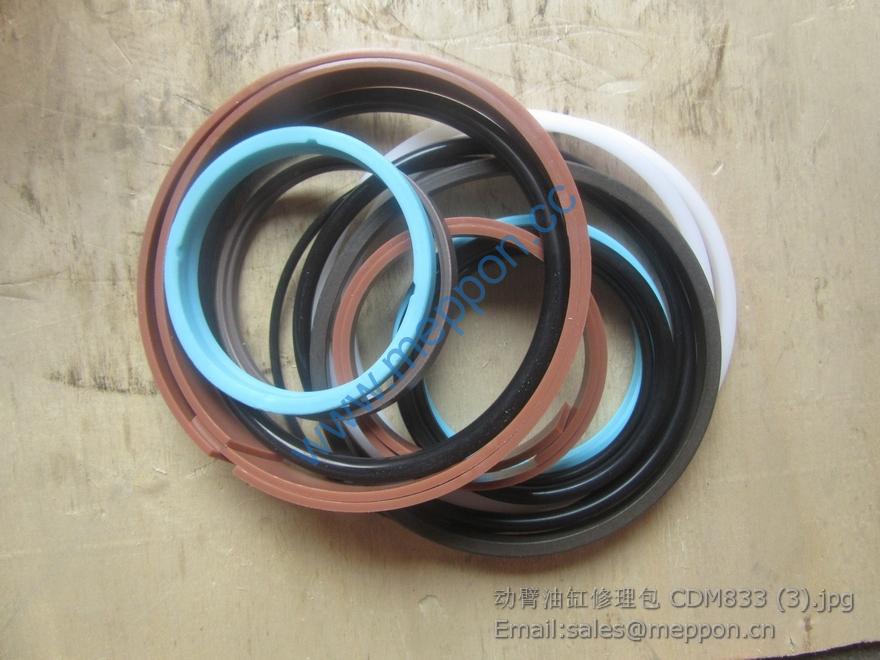

CDM833 LIFT CYLINDER REPAIR KITS CDM833-720000D
1 9401-01501 GB/T845-1985 自攻螺钉
ST4.2X16-Ep.Zn
Screw 3
2 9401-02577 GB/T6173-2000 螺母
M16X1.5-Ep.Zn
Nut 1
3 3402-00161 方向盘(134 型) Steering wheel 1
4 3401-00242 锁片 Locking plate 1
5 9401-01374 GB/T65-2000 螺钉 M4X10-Ep.Zn Screw 4
6 9401-01690 GB/T93-1987 垫圈 4-Ep.Zn Washer 2
7 9401-01506 GB/T848-2002 垫圈 4 Gasket 2
8 3402-00131 盖 Cover 1
9 3402-00132 挡圈 Snap ring 1
10 9401-01593 GB/T894.1-1986 挡圈 20 Snap ring 2
11 9401-01041 GB/T5783-2000 螺栓
M10X35-Ep.Zn
Bolt 4
12 9401-01669 GB/T93-1987 垫圈 10-Ep.Zn Washer 8
13 9401-01314 GB/T6170-2000 螺母 M10-Ep.Zn Nut 4
14 9401-01035 GB/T5783-2000 螺栓
M10X25-Ep.Zn
Bolt 4
15 9401-01597 GB/T894.1-1986 挡圈 25 Snap ring 2
16 3402-00133 转向管柱总成 Pipe assy 1
17 3402-00136 转向轴 Shaft 1
18 9401-02154 GB/T276-1994 轴承 61904 Bear 1
19 3400-00213 同轴流量放大转向器
TLF1-E1000C(FKB-3020)
Steering unit 1
20 FKB-3020 阀块 FKB-3020 Valve bolck 1
21 9401-01672 GB/T93-1987 垫圈 12-Ep.Zn Gasket 2
22 9401-01418 GB/T70.1-2000 螺钉
M12X60-Ep.Zn
Screw 2
1 4400-00630 卸荷阀 MQPCA-3512101 Unload pressure
valve
1
2 9401-01014 GB/T5782-2000 螺栓
M8X80-Ep.Zn
Bolt 2
3 9401-01697 GB/T93-1987 垫圈 8-Ep.Zn Washer 12
4 9411-00139 直角接头 Elbow joint 1
5 9401-01361 GB/T6173-2000 螺母
M22X1.5-Ep.Zn
Nut 9
6 9401-01903 JB/T982-1977 垫圈 22 Washer 11
7 9411-00394 软管总成 SB324-500 Pipe 1
8 9401-01899 JB/T982-1977 垫圈 14 Washer 26
9 3513-00332 储气筒 Reservoir 1
10 9401-01744 GB/T97.1-2002 垫圈 12-Ep.Zn Washer 4
11 9401-01672 GB/T93-1987 垫圈 12-Ep.Zn Washer 9
12 9401-01054 GB/T5783-2000 螺栓
M12X20-Ep.Zn
Bolt 8
13 3500-00091 制动钳 Z4J Brake 6
14 3506-02383 制动油管 Pipe 2
15 3506-00738 手动放水阀 MQPS-3533001 Drip valve 1
16 9411-00143 单夹 12 Clip 3
17 9401-01176 GB/T5783-2000 螺栓
M8X16-Ep.Zn
Bolt 3
18 9401-01237 GB/T5786-2000 螺栓
M12X1.5X30-Ep.Zn
Bolt 8
19 3507-00046 手制动器总成 DFX.2-2 Hand brake total 1
20 9401-01080 GB/T5783-2000 螺栓
M14X30-Ep.Zn
Bolt 4
21 9401-01674 GB/T93-1987 垫圈 14-Ep.Zn Washer 4
22 3500-00255 支板 Support 1
27 3506-02379 接钳钢管 Pipe 4
28 9411-00217 铰接螺栓 M14X1.5-Ep.Zn Hinge bolt 9
29 9411-00162 连接螺栓 Bolt 24
30 9401-01699 GB/T93-1987 垫圈 20-Ep.Zn Washer 24
31 9411-00631 钢丝 Steel wire 12
32 3506-02381 制动油管 Pipe 2
33 3506-02700 胶管总成 1-10-H3/Q112-550V0 Brake pipe line 1
34 9401-01898 JB/T982-1977 垫圈 12 Washer 5
36 3505-00060 加力器 CG70(YT) Booster 2
37 9411-00090 直通管接头 12/10 Joint 4
38 3506-01066 尼龙管总成 TC324-2100 Nylon tube total 1
39 3506-00828 尼龙管总成 TC324-2900 Nylon tube total 1
44 1000-00810 尼龙管总成 TC331-600(Q) Nylon tube total 1
45 3506-01404 尼龙管总成 TC319-280(WWF) Nylon tube total 1
46 9401-01183 GB/T5783-2000 螺栓
M8X30-Ep.Zn
Bolt 6
47 3506-00745 气制动阀 XM60D(YT) Master vale 1
48 3500-00086 三通 Three-way-joint 1
49 3508-00072 手刹软轴 LJ112FXL1600 Hand brake 1
50 3506-01095 尼龙管总成 TC322-1400 Nylon tube total 1
51 3506-00824 尼龙管总成 TC324-2250(W) Nylon tube total 1
52 3506-02389 三通 Three-way-joint 2
53 4016-00025 卡座 Clip plank 1
54 4016-00010 尼龙扎带 ALT-280H-B Nylon pipe 5
55 9411-00155 三通 Three-way-joint 1
56 3500-00039 制动灯开关 150 型 Brake lump
switch
1
57 3506-02011 铰接螺栓 M12X1.25 Bolt 2
58 3506-02016 胶管总成 1-10-H3/Q112-900V0 Brake pipe line 1
59 3506-04217 氟胶管 11X19 Pipe 1
63 9401-01851 JB/ZQ4454-1997 密封垫 14.5X20 Washer 2
1 3721-00017 双音盆形电喇叭
DL253A 24V
Electric horn 1
2 4011-00037 前线束 ZL008.QXS Front wiring bundle 1
3 4121-00053 右混合前照灯支架 Combination front headlight
bracket
1
4 4121-00043 右混合前照灯
H-QZ290X145-1R
Combination front headlight 1
5 3731-00624 燃油传感器
YT305B-990-A
Fuel sensor 1
6 3797-00074 驾驶室电器 Driver’s cab electric system 1
7 3818-00013 油压过低报警器
YB911A-NPT1/4-0.07
MPa
Alarm annunciator 1
8 3751-00032 直流接触器
JCC100/1C24.48
Starting relay 1
9 4013-00319 后灯线束
ZL008.HDXS
Taillight wiring bundle 1
10 4106-00085 工作灯 DH-YTZG03 Back working lamp 1
11 4107-00022 右后尾灯
Z-HX85X75-1-00
Taillight 1
12 3731-00148 温度传感器
WDG1371C M16X1.5
Temperature sensor 2
13 4106-00085 工作灯 DH-YTZG03 Back working lamp 1
14 4019-00074 电 瓶 线 DPX-2B
50X730
Battery connecting line 1
15 4107-00021 左后尾灯
Z-HX85X75-1-00
Taillight 1
16 4017-00068 合金桩头 HD0018 Metal picket 2
17 3703-00283 免维护蓄电池
6-QW-120T
Storage battery 2
18 4019-00072 电瓶线 DPX-16B
50X2530
Battery connecting line 1
