Description

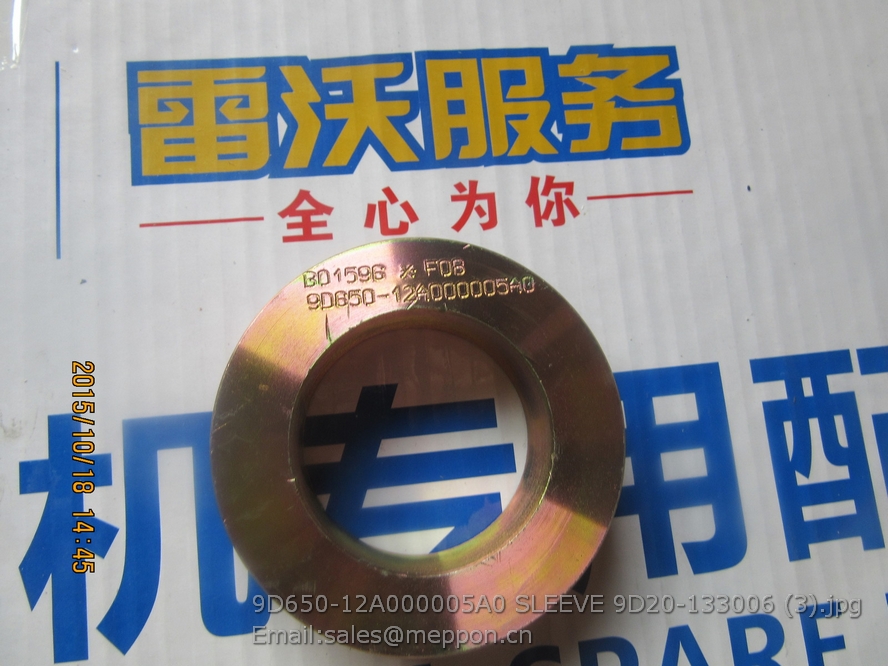

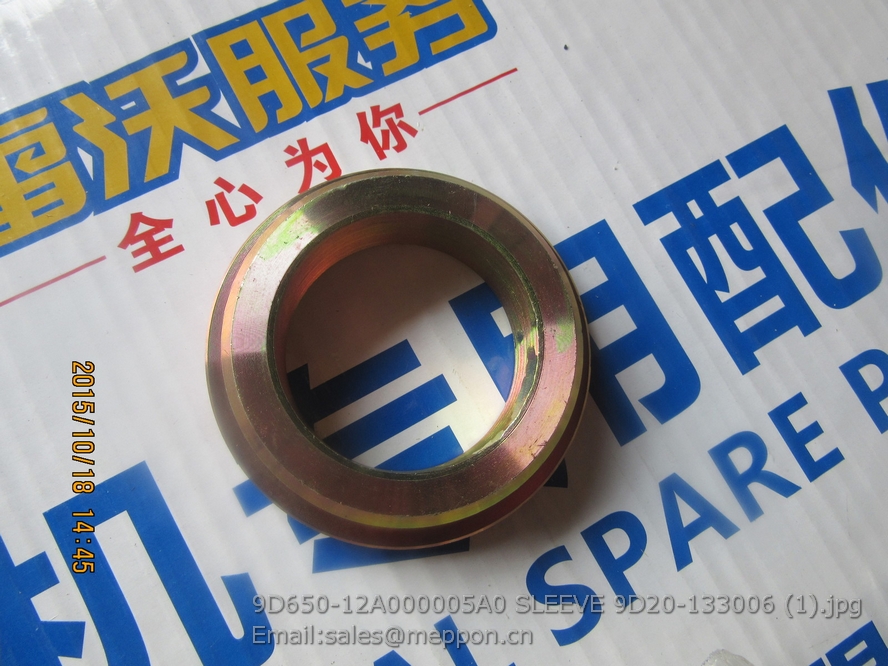

9D650-12A000005A0 SLEEVE 9D20-133006

1 QC495T-05002 飞轮螺栓 Fly-wheel bolt 8
2 QC490Q(DI)-05001 飞轮螺栓保险片 Safe plate 4 现在不装
3 GB/T119.1-2000 销B10×25 Pin B10×25 1
4 QC495T-05101-2 飞轮 Fly-wheel 1
5 QC490Q(DI)-05102 飞轮齿圈 Gear ring of Fly-wheel 1
6 GB/T276-1994 轴承203 Bearing 203 1
7 QC495Q(DI)-05004 曲轴 Crankshaft 1
8 QC495Q(DI)-05010 前甩油盘 Front plate 1
9 GB/T1096-1979 键C12×63 Key C12×63 1
10 QC495T-050061 曲轴皮带轮 Crankshaft belt pulley 1
11 N85-06002 起动爪垫圈 Washer starting pawl 1
12 N85-06003-1 皮带轮压紧螺栓 Belt pulley bolt 1

1 QC490Q(DI)-06003 气门推杆 Valve jib 8
2 QC490Q(DI)-06002 气门挺柱 Valve tappet 8
3 GB/T1096-1979 键C8×22 Key C8×22 1
4 QC490Q(DI)-06001A 凸轮轴 Camshaft 1

1 QC495T-07007 双头螺柱 Stud 2
2 QC495T-07003A 右护板 right plank 1
3 GB/T93-1987 垫圈8 Washer 8 25
4 GB/T97.1-2002 垫圈8 Washer 8 25
5 GB/T6170-1988 螺母M8 Nut M8 4
6 GB/T119.1-2000 销B14×16 Pin B14×16 2
7 QC495T-07006 油底壳垫片 Gasket of oil pan 1
8 QC495T-07001C 油底壳 Oil pan jointing part 1
9 QC495T-07004A 左护板 left plank 1
10 QC495T-07010 前支撑脚 anterior crutch 2
11 GB/T5783-2000 螺栓M10×40 Bolt M10×40 4
油底壳总成QC495T-07000
第 16 页12 GB/T5783-2000 螺栓M16×60 Bolt M16×60 12
13 GB/T97.1-2002 垫圈16 Washer 16 12
14 4102Q-13101 放油螺塞 Drainer plug 1
15 N85-11002 密封垫圈 Washer 1
16 GB/T5783-2000 螺栓M8×40 Bolt M8×40 9
17 QC495T-07009 双头螺柱 Stud 2
18 GB/T5783-2000 螺栓M8×75 Bolt M8×75 2
19 QC480Q-01402 机油尺导管合件 Oil dipstick conduit part 1
20 QC495T-07008 油标尺部件 Oil dipstick part 1
