Description

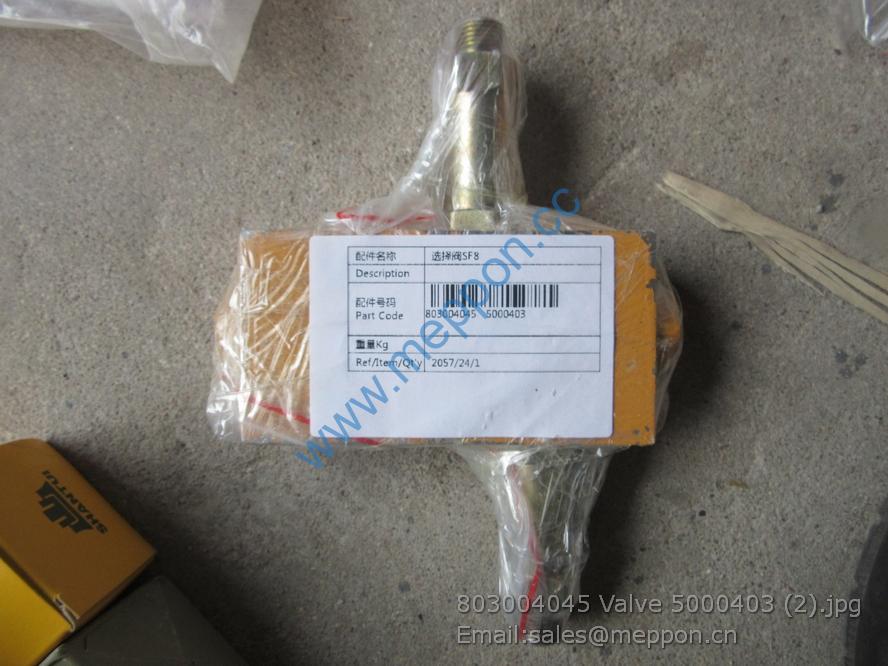

803004045 Valve 5000403 XCMG

1 13024778 1 Fuel Filter Bracket
2 90003931102 2 Spring Washer
3 90011350026 2 Hexagon Head Bolt
4 1001059132 1 Fuel Filter
5 13022577 1 Fuel-inlet Pipe Assembly
6 02404201 2 Gasket
7 90014040008 2 Plain Washer
8 90003802419 2 Hexagon Head Bolt
9 13023195 1 Fuel-inlet Pipe Assembly

1 13032649 2 Bolt
2 612600080200 4 Washer
3 13028033 1 Fuel Filter Seat
4 1001044158 1 Fuel Filter Element

1 90003802312 2 Hexagon Head Bolt
2 90003932008 4 Wave Spring Washer
3 90012700001 2 Hexagon Nut, Style 2
4 12272776 1 Bracket
5 12166451 1 Clip (half)
6 90011350060 2 Hexagon head bolt
7 12272777 1 Bracket
8 12165346 3 Clip (half)
9 13022864 1
High-pressure Fuel Pipe
Assembly

1 13022412 1 High-pressure Fuel Pipe
2 01175776 1 Clamp
3 13022410 1 High-pressure Fuel Pipe
4 13022411 1 High-pressure Fuel Pipe

1 13021851 1 Intake Connecting Pipe
2 90011420025 2 Hexagon Flange Bolt
3 12188750 1 Pipe Joint
4 12270944 1 Thermostat Cover
5 13021132 1 Thermostat
6 1001058838 1 Intake Manifold
7 612600080200 2 Washer
8 01118960 2 Hexagon Screw Plug
9 1000104597 3 Intake Manifold Gasket
10 13023364 2 Assembled Sealing Washer
11 01118979 2 Hexagon Screw Plug
12 01152715 1 Bowl Plug
13 13023363 1 Unit washer
14 01125789 1 Hexagon Screw Plug
15 13057039 1 Assembled Sealing Washer
16 13020659 1 Pipe Joint
