Description

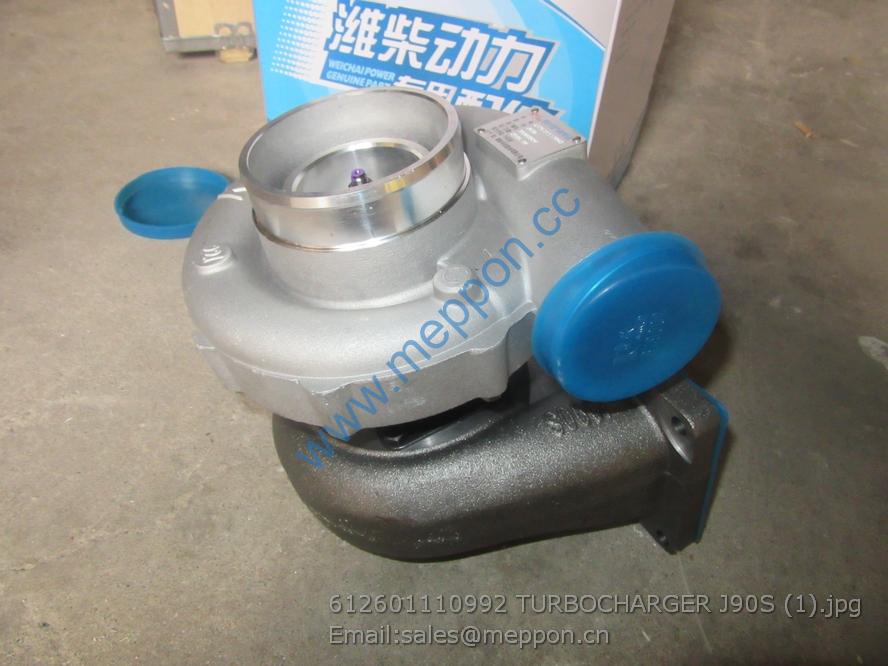

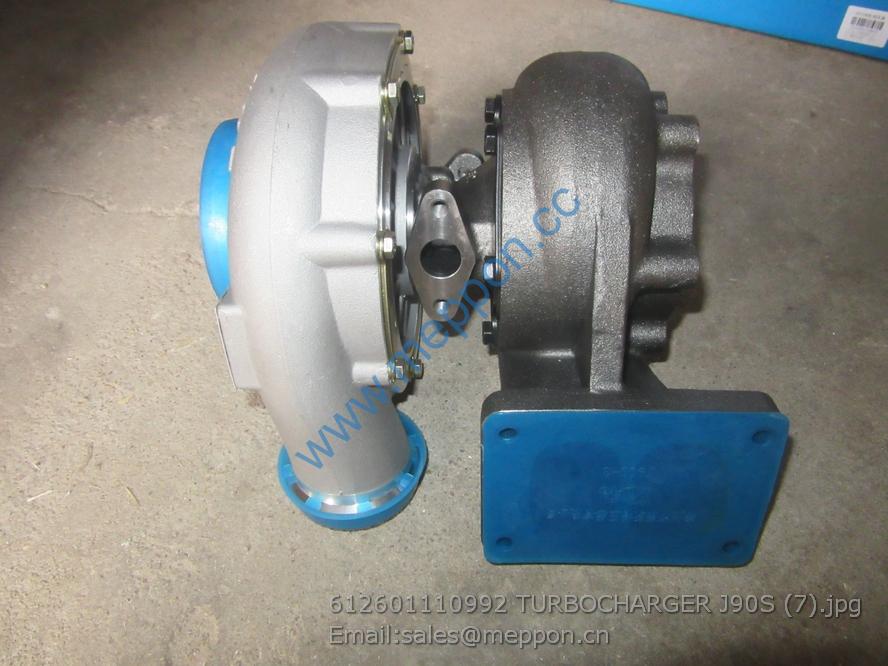

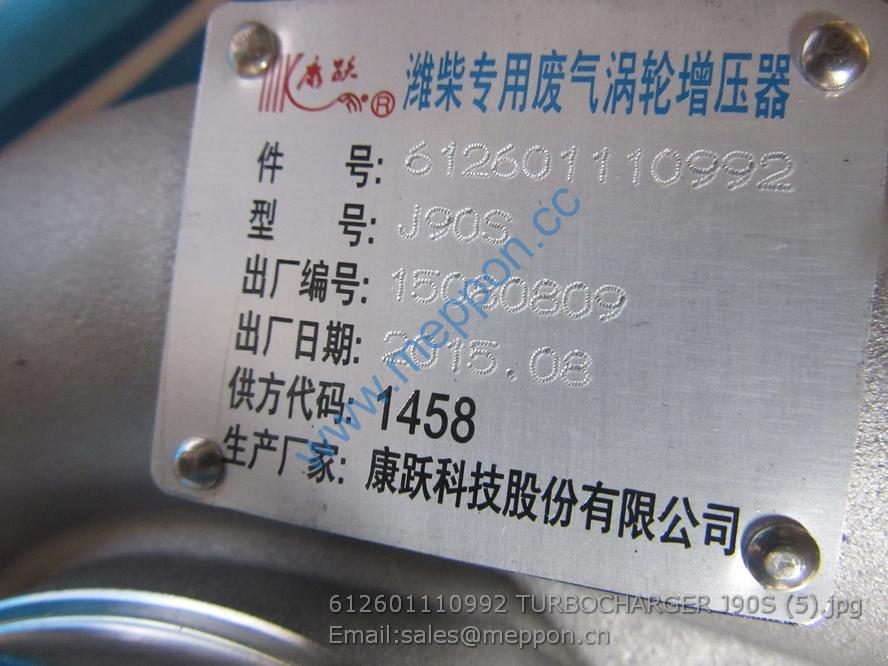

612601110992 TURBOCHARGER J90S WEICHAI

1 13056110 4 连杆下瓦 Connecting Rod Lower Shell
2 13056109 4 连杆上瓦 Connecting Rod Upper Shell

1 1001065717 1 散热器 Radiator

1 90003802538 8 六角头螺栓 Hexagon Head Bolt
2 13037828 4 摇臂座总成 Rocker Arm Bracket Assembly
3 13032055 4 气缸盖分总成 Cylinder Head Subassembly
4 90003813532 8 双头螺柱 Double End Stud
5 12163182 8 垫片 Gasket
6 13020378 20 六角螺母 Hexagon Nut
7 12167216 12 垫片 Gasket
8 13032347 8 双头螺柱 Double End Stud
9 90011520048 4 双头螺柱 Double End Stud
10 13026701 4 气缸盖垫片 Cylinder Head Gasket
11 01104736 8 内六角锥形螺塞 Inner hexagon srew plug

1 12164698 4 气门锁夹 Valve Collet
2 12164645 2 气门弹簧座 Valve Spring Retainer
3 01222009 2 气门弹簧 Valve Spring
4 01222051 2 气门弹簧 Valve Spring
5 13024293 2 气门弹簧下座 Valve Spring Bottom Retainer
6 13023391 2 气门杆密封套 Valve Stem Seal
7 13028585 1 气缸盖分总成 Cylinder Head Subassembly
8 12159608 1 排气门 Exhaust Valve
9 12159606 1 进气门 Intake Valve

1 13026864 1 气门导管 Valve Guide
2 612600040634 3 碗形塞 Bowl Plug
3 13031513 1 气缸盖 Cylinder Head
4 13058468 1 排气门座圈 Exhaust Valve Seat
5 13026865 1 进气门座圈 Intake Valve Seat
6 13026863 1 进气门导管 Intake Valve Guide

1 13059912 1 气缸盖垫片 Cylinder Head Gasket

1 12159630 1 摇臂座 Rocker Arm Bracket
2 12165314 4 弹簧垫圈 Spring Washer
3 90014690003 2 轴用弹性挡圈 Circlip for Shaft
4 13037827 2 摇臂组件 Rocker Arm Set
