Description

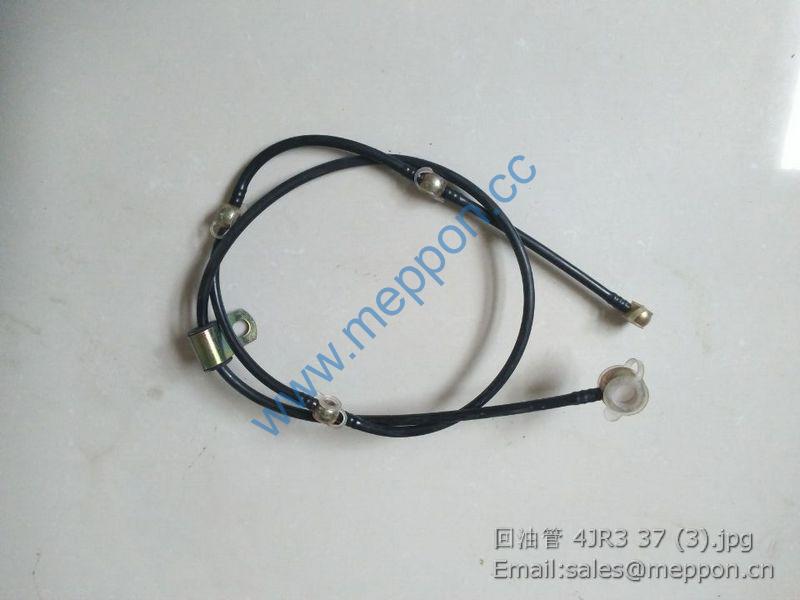

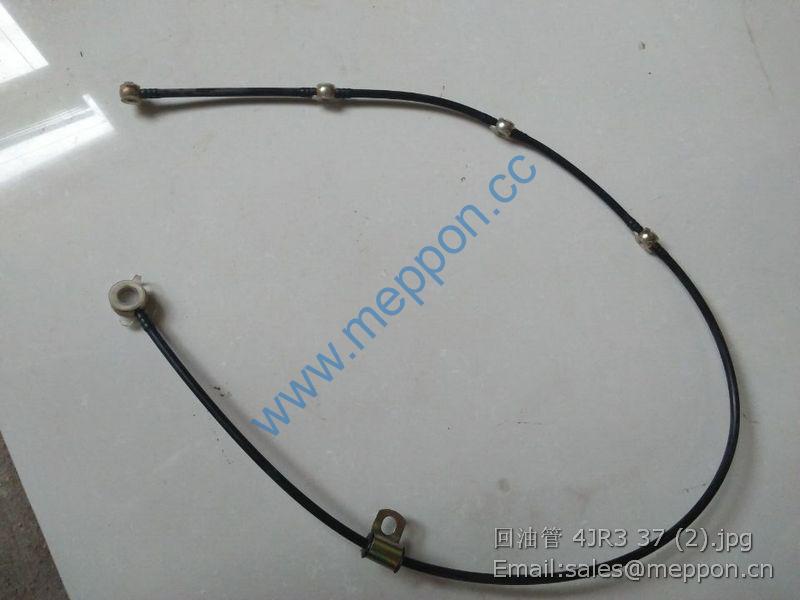

4JR3 OIL RETURN PIPE QUANCHAI

TS08110010000K Air filter assembly 1
1 TG1204.11E.1.1 Air pre-filter 1
2 TS08110010001K Air inlet pipe weldment 1
3 SAEJ1508-SLTB136 Hoop 1
4 TG1654.11G.4-01 Air inlet steel pipe 1
5 Q676140 Type-B worm drive hose clamp 2
6 TG1204.11K-01 Oil bath type air filter outlet hose 1
7 GBT5783-M10X35-8.8-A3L Hex bolt 2
8 GBT93-10-A0P Standard spring washer 4
9 GBT97.1-10-A0P Flat washer 4
10 TG1204.11K-02 Air filter mounting plate 1
11 GBT5783-M10X25-8.8-A3L Hex bolt 2
12 TG1204.11K.2 Air filter 1
13 TG1204.11B-01 Vacuum alarm 1
14 Q676127 Type-B worm drive hose clamp 1
15 TG1204.11A-01 Air inlet hose 1
16 Q67689 Type-B worm drive hose clamp 1

TS08131020000K Cooling System Assembly 1
1 TS08131020001K Radiator Installation Assembly 1
2 Q67664 B-Type Worm Transmission Hose Clamp 3
3 TG1204.13A-01b Water Tank Inlet Hose 1
4 GBT31.1-M12X70-8.8 Hexagon Bolts With Split Pin Hole on Shank 4
5 GBT97.1-12-A0P Flat Washer 4
6 TG1204.13A-02a Water Tank Outlet Hose 1
7 Q67676 B-Type Worm Transmission Hose Clamp 1
8 TG1204.13A-03a Rubber Pad 4
9 TF1254.13C-02 Right Supporting Plate of Radiator 1
10 TG1204.13A-04a Washer 2
11 GBT6178-M12-8 Hexagon Slotted Nut, Style 1 4
12 GBT91-2.5X28-A0P Split Pin 4
13 TF1254.13C-01 Left Supporting Plate of Radiator 1
14 GBT93-18-A0P Standard Spring Washer 4
15 GBT5783-M18X40-8.8-A9L Hexagon Bolt 4

TS08131020000K Cooling System Assembly 1
1 GBT6170-M10-8-A3L Hexagon Nut, Type-1 2
2 GBT93-10-A0P Standard Spring Washer 2
3 TG1204.13F-01 Radiator Pull Rod 1
4 TG1454.13F-01 Pull Rod Seat 1
5 GBT97.1-10-A0P Flat Washer 1
6 GBT5783-M10X25-8.8-A3L Hexagon Bolt 1
7 GBT5783-M12X25-8.8-A3L Hexagon Bolt 1
8 GBT93-12-A0P Standard Spring Washer 1
9 GBT6170-M8-8-A2L Hexagon Nut, Type-1 2
10 GBT93-8-A0P Standard Spring Washer 2
11 GBT97.1-8-A0P Flat Washer 2
12 TG1204.13A-15 Seal Cover Plate 1
13 TG1204.13A-16 Seal Strip 1
14 GBT5783-M8X20-8.8-A2L Hexagon Bolt 2
15 TS08131010012K Radiator Backing Board Weldment 1
16 TG1204.13A-06 Water Tank Seal Sponge 1
17 GBT97.1-18-A0P Flat Washer 4
18 GBT93-18-A0P Standard Spring Washer 4
19 GBT5783-M18X35-8.8-A9L Hexagon Bolt 4
20 TG1204.13D.3 Right Wind Board Weldment 1
21 TG1204.13D.2 Left Wind Board Weldment 1

TS08131020000K Cooling System Assembly 1
1 TG1204.13A-08 Connecting Rubber Pipe 1
2 Q676B12 C-Type Worm Transmission Hose Clamp 3
3 TG1204.13A-09 Breath Rubber Pipe 1
4 GBT6170-M8-8-A2L Hexagon Nut, Type-1 2
5 GBT93-8-A0P Standard Spring Washer 2
6 GBT97.1-8-A0P Flat Washer 2
7 TG1204.13A-07a Liquid Tank Assembly 1
8 GBT5783-M8X25-8.8-A2L Hexagon Bolt 2
9 TS08131020001K Radiator Installation Assembly 1
9.1 TS08131020001 Radiator Assembly 1
9.2 TG1204.13A.4b.3 Wind Hood 1
9.3 GBT97.1-8-A0P Flat Washer 12
9.4 GBT93-8-A0P Standard Spring Washer 10
9.5 GBT5783-M8X20-8.8-A2L Hexagon Bolt 10
9.6 GBT882-B8X24 Pin Shaft 2
9.7 TG1204.13C.1.4 Dustproof Net 1
9.8 TS08131010009K Hydraulic Oil Radiator Assembly 1
9.9 GBT91-2.5X20-A0P Split Pin 2

TG1854.20 Engine control mechanism assembly 1
1 TG1204.20A-01 Manual accelerator control handle 1
2 GBT818-M4X14-4.8-A2L Cross recessed pan head screw 1
3 TG1204.20A-02 Threading rubber ring 2
4 TG1204.20A.3 Manual accelerator control rocker-arm weldment 1
5 GBT5781-M6X20-4.8-A2L Hex head bolt 1
6 GBT93-6-A0P Standard spring washer 1
7 TG1204.20A-05 Misfire cable assembly 1
8 TG1204.20A-07 Dust ring 1
9 TG1204.20A.2 Manual accelerator control mechanism 1
9.1 TG1204.20A.2.1 Manual accelerator control lever weldment 1
9.2 TG1204.20A.2-01 Manual accelerator support plate 1
9.3 FT300.43.159 Hand brake lining 1
9.4 FT300.43.160 Big gasket 2
9.5 GBT955-12 Wave-shape spring washer 1
9.6 GBT6170-M12-8-A3L Hexagon nut , Style 1 2
9.7 TG1204.20A.2-02 Hand throttle rocker arm 1
9.8 GBT97.1-8-A0P Flat washer 1
9.9 GBT93-8-A0P Standard spring washer 1
9.10 GBT6170-M8-8-A2L Hexagon nut , Style 1 1
9.11 GBT6184-M5-8 All-metal hexagon lock nut, style 1 1
10 GBT5783-M10X30-8.8-A3L Hex head bolt 2
11 GBT97.1-10-A0P Flat washer 2
12 GBT93-10-A0P Standard spring washer 2
13 GBT6170-M10-8-A3L Hexagon nut , Style 1 2
14 TG1204.20A-03 Manual accelerator cable assembly 1
15 GBT882-B5X18-A0P Axis pin 1
16 GBT97.1-5-A0P Flat washer 1
17 GBT91-2X12-A0P Split pin 1
