Description

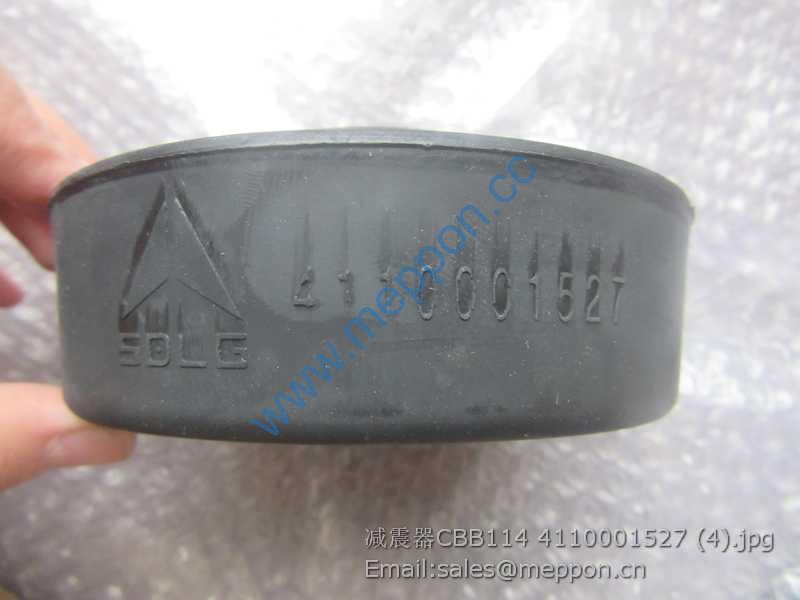

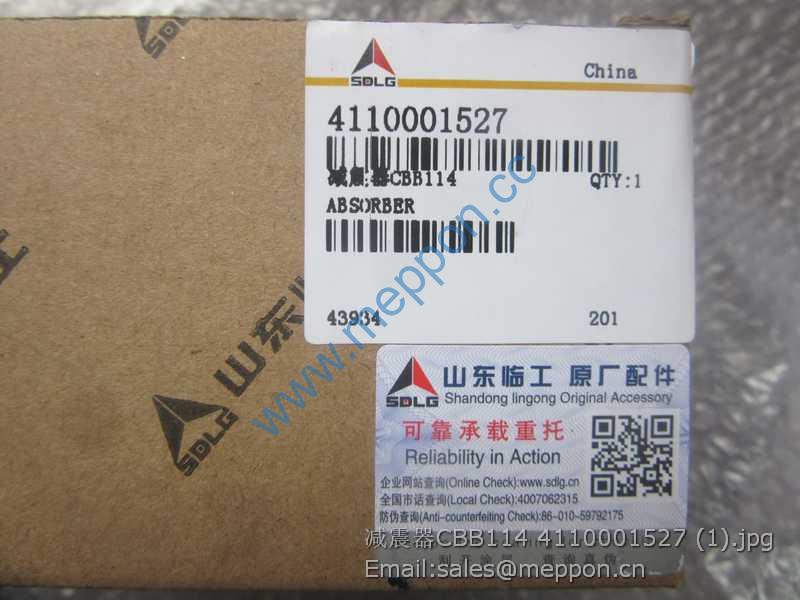

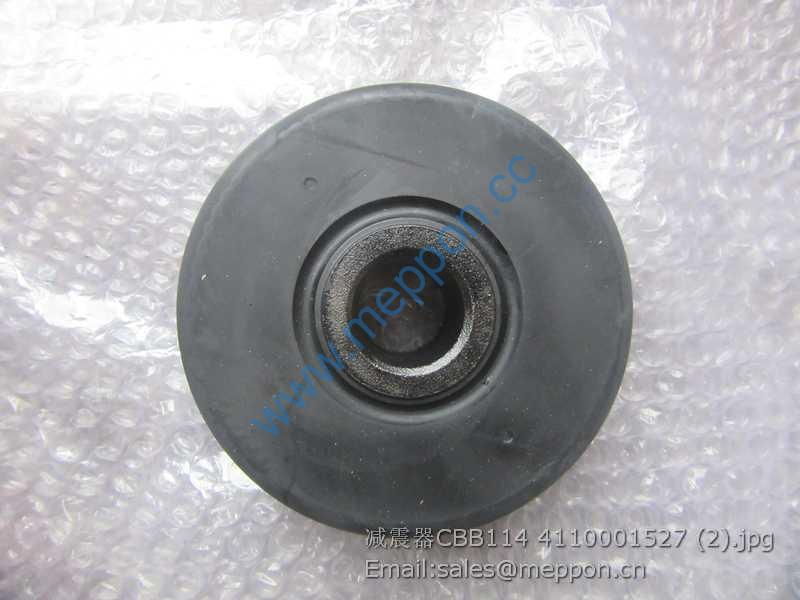

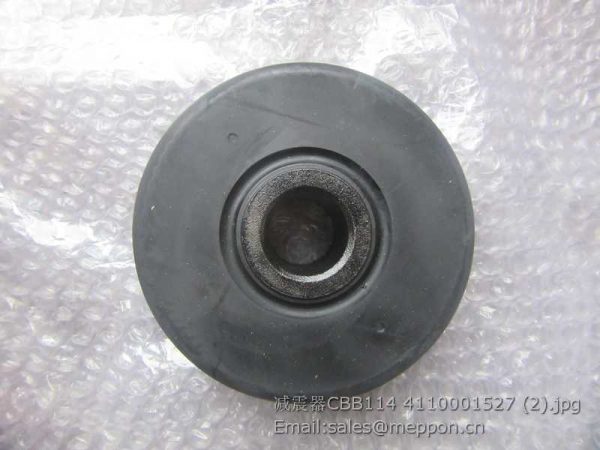

4110001527 SDLG ABSORBER CBB114

1 161500030009 6 6 连杆总成 Connecting rod assembly
2 VG1500030077 6 6 连杆衬套 Connecting rod bush
3 VG1500030023 12 12 连杆螺栓 Connecting rod bolt
4 VG1500037010 6 6 活塞总成 Piston assembly
5 VG1047030050 1 1 活塞环组 Piston rings
6 VG1560037033 6 6 连杆轴瓦（下瓦） Sleeve bearing
7 VG1560037034 6 6 连杆轴瓦（上瓦） Sleeve bearing
8 VG1560030013 6 6 活塞销 Piston pin
9 VG1560030012 12 12 活塞销挡圈 Retaining ring

1 61560040068 6 6 气缸盖总成 Cylinder head assembly
1-1 61560040060 6 6 气缸盖 Cylinder head
1-2 VG1560040057 6 6 进气门座 Intake valve seat
1-3 VG1560040037 6 6 排气门座 Exhaust valve seat
1-4 VG1560040031 12 12 气门导管 Valve guide
1-5 VG1406060010 6 6 环状密封圈 Sealing ring
1-6 VG1560040049 6 6 喷油器衬套 Nozzle holder insert
1-7 VG1540040011 6 6 油孔堵塞 Bolt
1-8 90003989294 24 24 30/8N05564 碗形塞 Core hole plug
1-9 90003989277 6 6 12/8N05564 碗形塞 Core hole plug
1-10 90003989721 6 6 22/8DIN05564 碗形塞 Core hole plug
1-11 90003989725 6 6 25/8DIN05564 碗形塞 Core hole plug
2 VG1500040065 6 6 气缸盖衬垫 Cylinder head gasket
3 VG1500040066 6 6 气缸盖罩 Cylinder head cover
4 VG14040021 6 6 气缸盖罩衬垫 Cylinder head cover gasket
5 HG1500040102 1 1 出水管 Water drain pipe
6 HG1500069145 1 1 管接头组件 Pipe connection assembly
7 VG1200040027 2 2 夹紧块 Cylinder head clamp
8 VG1200040034 21 21 带肩螺母 Collar nut
9 VG1500040012 2 2 吊环夹紧块 Clamping yoke
10 VG14010388 2 2 吊环螺钉 Eye screw

11 VG1560040032 12 12 气门杆密封套 Valve guide bush
12 VG1500040023 24 24 气缸盖主螺栓 Cylinder head bolt
13 VG1500040009 5 5 夹紧块 Clamping yoke
14 VG1200040023A 5 5 夹紧块 Cylinder head clamp
15 90003800466 24 24 DIN931-M8×60-8.8-Zn.D 六角头螺栓 Hex head bolt
16 90003932023 24 24 B8 DIN137-Zn.D 波形弹性垫圈 Wave spring washer
17 90003962014 1 1 六角头螺塞 Screw plug
18 VG9003080003 1 1 复合密封垫圈 Gasket
