Description

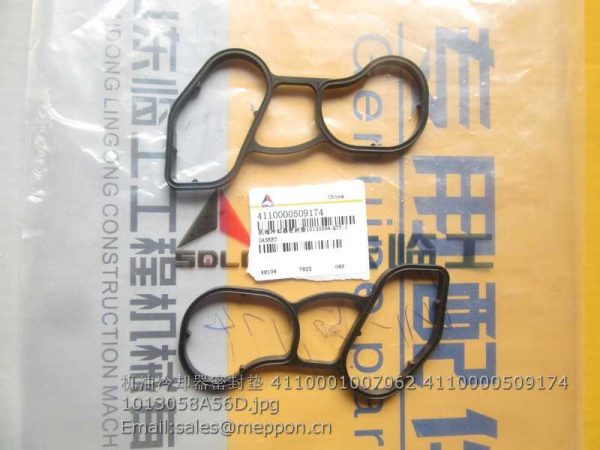

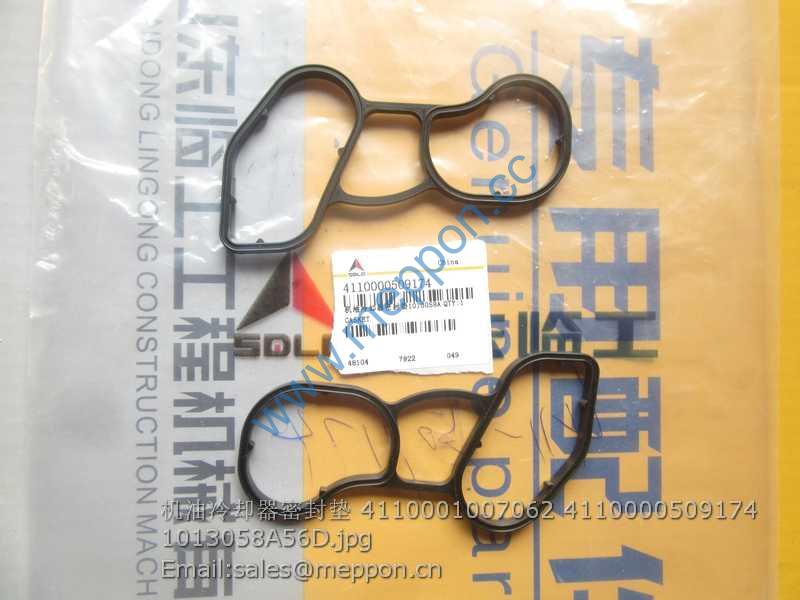

4110001007062 4110000509174 1013058A56D SDLG OIL COOLER SEAL

正时齿轮室 Gearcase HZ2600010958A
六角头螺栓 Hex head bolt 90003802523
六角头螺栓 Hex head bolt 90003802561
弹簧垫圈 Spring lockwasher 90003931122
六角头螺栓 Hex head bolt 90003800571
平垫圈 Flat washer 90003930271
六角螺塞 Screw plug 90003962051
密封垫圈 Sealing ring 90003098086
O 型密封圈 Sealing ring VG288730061
圆柱销 Straight pin 90003901507
三角盖板 Cover HG1500010025
垫片 Gasket HG1500010026
六角头螺栓 Hex head bolt 90003802415
凸轮轴齿轮盖 Camshaft gear cover HG1500010141
凸轮轴齿轮盖垫片 Gasket VG14010070
双头螺柱 Stud 90003813429
双头螺柱 Stud 90003813447
双头螺柱 Stud 90003813470
波形弹性垫圈 Wave spring washer 90003932023
1 型六角螺母 Hexagon nut 90003871252
六角头螺栓 Hex head bolt 90003802519
鞍形弹性垫圈 Saddle shaped spring washer 90003932025
空压机齿轮盖 Air compressor gear cover HG2600010632
空压机齿轮盖垫片 Gasket VG14010040
六角头螺栓 Hex head bolt 90003802576

波形弹性垫圈 Wave spring washer 90003932024
前油封座 Front oil seal carrier VG2600010928
前油封座垫片 Gasket VG2600010934
前油封 Front oil seal VG1047010038
六角头螺栓 Hex head bolt 90011260039
复合密封垫圈 Sealing washer 90003098018
加油管组件 Oil filler neck HG2600010478
加油短管垫片 Oil filler gasket VG14010086
六角头螺栓 Hex head bolt 90003802321
轻型弹簧垫圈 Spring lockwasher 90003931082
加油管盖总成 Oil filler cap VG2600010489

机油冷却器盖 Oil cooler cover HG2600010013
机油冷却器盖垫片 Gasket VG1540010015A
六角头螺栓 Hex head bolt 90003800467
六角头螺栓 Hex head bolt Q150B0835
六角头螺栓 Hex head bolt 90003802442
波形弹性垫圈 Wave spring washer 90003932023
放水开关 Water drain connector HG1500019130
复合密封垫圈 Sealing washer VG9003080005
飞轮壳 Flywheel housing HG1500010078
飞轮壳螺栓 Hex head bolt VG1500010062
飞轮壳螺栓 Hex head bolt VG1500010101
圆柱销 Straight pin 90003901604
双头螺柱 Stud 90003813527
2 型全金属六角锁紧螺母 Self-locking nut 90003888452
双头螺柱 Stud 90003813537
弹簧垫圈 Spring lockwasher 90003931122
1 型六角螺母 Hexagon nut Q340B10
六角头螺塞 Screw plug HG1500010015
密封垫圈 Sealing ring Q72314T3M
橡胶密封垫 Ring HG1500010014
观察孔盖 Observation hole cover HG1500010013
六角头螺栓 Hex head bolt 90003802415
复合密封垫圈 Sealing washer VG9003080002
油尺管支架 Bracket HG1500010103
小垫圈 Flat washer Q4006
