Description

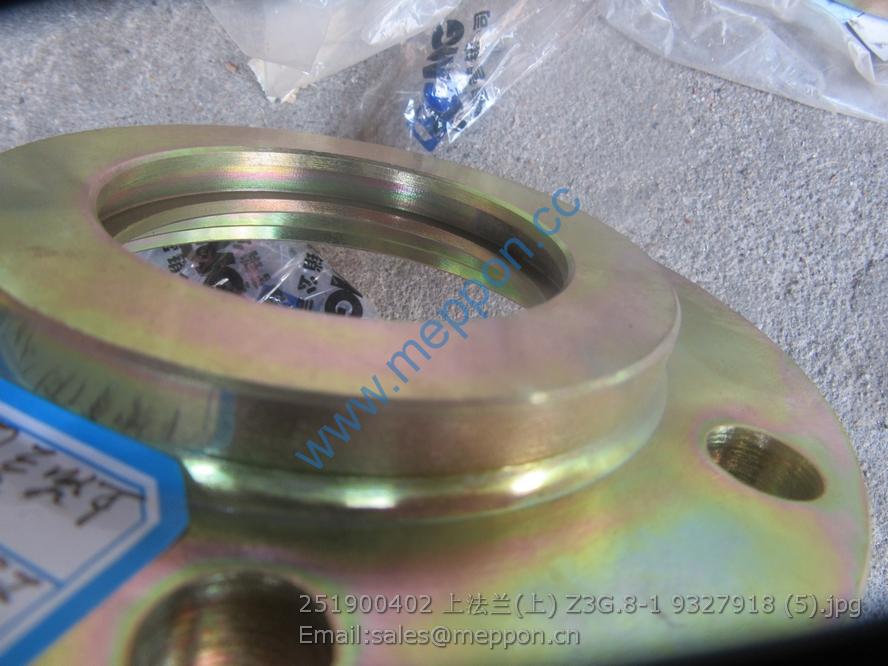

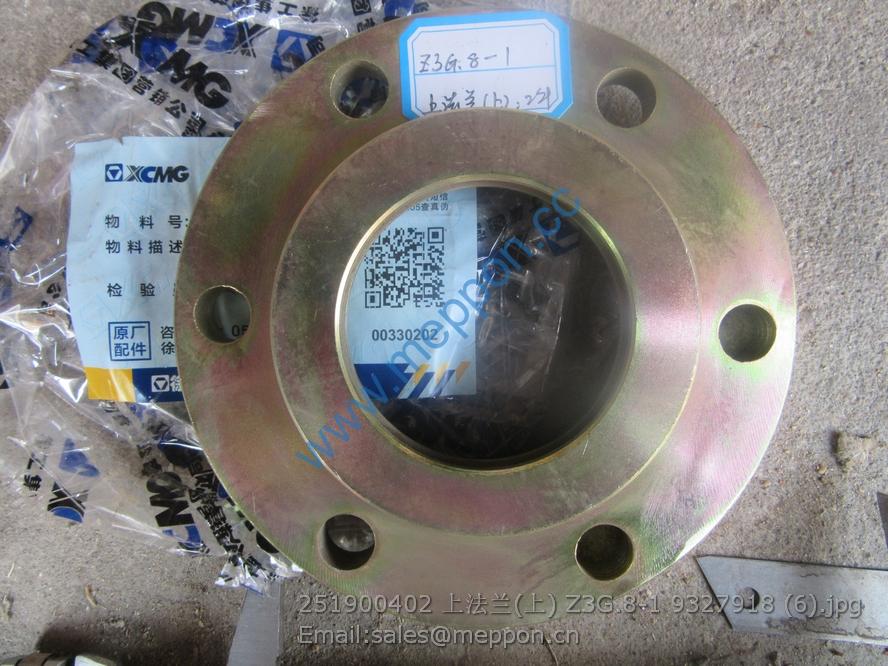

251900402 XCMG FLANGE Z3G.8-1 9327918

1 612600012725 1 Dipstick
2 612600012722 1 Dipstick Pipe Set

1 614070055 1 Gasket
2 612600070465 1 Lubricating Oil Pump
3 612600070411 1
Hexagon Flange with
Tooth Bolt
4 90011430008 1
Hexagon Flange with
Tooth Bolt

1 90003871232 4 Hexagon Nuts, Style 1
2 90014040006 6 Plain Washer
3 612600070023 1 Oil Suction Strainer Bracket
4 612600070024 1 Oil Suction Strainer Bracket
5 612600070025 1 Oil Suction Strainer Bracket
6 90011350004 4 Hexagon Head Bolt
7 90003802307 2 Hexagon Head Bolt
8 612600070334 1 Filter Assembly
9 90003802523S 2 Hexagon Head Bolt
10 90014040008 2 Plain Washer
11 612600070355 1 Gasket

1 612600040566 1 Oil Cooler Cap Gasket
2 81400010032 2 Seal Ring
3 61800010113 1 Oil Cooler
4 90003932023 5 Wave Spring Washer
5 90003862419S 4
Inner Hexagon Socket Head
Cap Screw
6 1001021160 1 Oil Cooler Cap
7 90011410003 16 Hexagon Flange Bolt
8 90011410009 6 Hexagon Flange Bolt
9 612600112056 1 Back-up Block
10 13023361 1 Assembled Sealing Washer
11 612600010465 1 Water Draining Valve
12 90011410010 1 Hexagon Flange Bolt
13 90017020003 1 Hexagon Screw Plug
14 612600080200 1 Washer
