Description

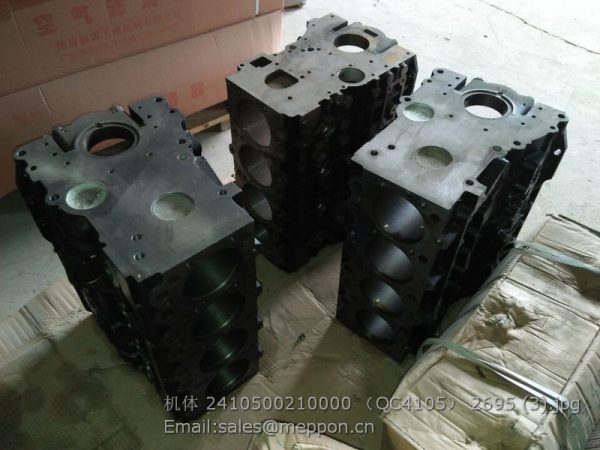

2410500210000 QC4105 quanchai cylinder block

TS10483020000K Harness installation assembly, front lamp 1
1 TS10483020001K Front lamp harness assembly 1
2 GB/T 6170-M6-8-A2L Hexagon nut, style 1 2
3 GB/T 93-6-A0P Standard spring washer 2
4 GB/T 97.1-6-A0P Plain washer 2
5 FT600B.48B.031 Front lamp combination assembly 1
6 Q67405100 Plastic fastening strap 1
7 GB/T 6170-M8-8-A2L Hexagon nut, style 1 1
8 FT65.48.340 Horn assembly 1
9 GB/T 97.1-8-A0P Plain washer 3
10 GB/T 5783-M8×16-8.8-A2L Hexagon head bolt 3
11 GB/T 93-8-A0P Standard spring washer 3
12 FT65.48.095 Harness fastening clip (1) 2

TS10484020000K Rear lamp harness assembly 1
1 TS10484010002 Harness protection board 1
2 3724D01-201 Loosable cable ties 15
3 GB/T 818-M4×10-4.8-A2L Cross recessed pan head screw 5
4 GB/T 93-4-A0P Standard spring washer 5
5 TD800.484.2 Oil amount sensor 1
6 TS10484020001K Rear lamp harness assembly 1
7 FT65.48.094 Wire through ring (2) 3
8 FT800A.48L.088 Parking brake switch 1
9 GB/T 5783-M6×12 Hexagon head bolt, full thread 1
10 GB/T 95-6-A0P Plain washer 1
11 GB/T 5783-M8×16-8.8-A2L Hexagon head bolt 2
12 GB/T 93-8-A0P Standard spring washer 2
13 FT65.48.092 Wire through ring (3) 2
14 TS10484010008 Rear lamp assembly 2
15 TD800.484B.2 Rear taillamp assembly 2
16 GB/T 6170-M5-8-A2L Hexagon nut, style 1 11
17 GB/T 93-5-A0P Standard spring washer 11
18 GB/T 97.1-5-A0P Plain washer 11
19 TD900.484.2 Rear trailer socket 1
20 GB/T 819.1-M5×35-4.8-A1L Cross recessed countersunk head screw 3
21 GB/T 97.1-8-A0P Plain washer 2
22 TB450.484E.6 Right reflector 2
23 TB450.484E.5 Left reflector 2
24 TS10484010007 Reflector installation plate (left) 1
25 TS10484010006 Reflector installation plate (right) 1

TS10485010000 Battery installation assembly 1
1 GBT 6170-M8-A3L Hexagon nut, style 1 2
2 GBT 93-8-A0P Standard spring washer 2
3 GBT 97.1-8-A0P Plain washer 2
4 TG1204.485-02 Battery pressing plate 1
5 FT65.48.091 Battery bonding 1
6 FT65.48.090a Battery power source wire 1
7 TD800.485A-03 Fixing clip 1
8 TG1204.485.1 Battery assembly 1
9 TB450.485.1 Battery shock absorbing mat 2
10 TG1204.485-01 Battery U-shape pull rod 1
11 3724D01-201 Loosable cable ties 1

TS10487020000K Compound instrument assembly 1
1 GBT 6170-M5-8-A2L Hexagon nut, style 1 3
2 GBT 95-5-A0P Plain washer 3
3 GBT 93-5-A0P Standard spring washer 3
4 GBT 68-M5X20-4.8-A2L Slotted countersunk head screw 3
5 TS10487020001K Compound instrument assembly 1
