Description

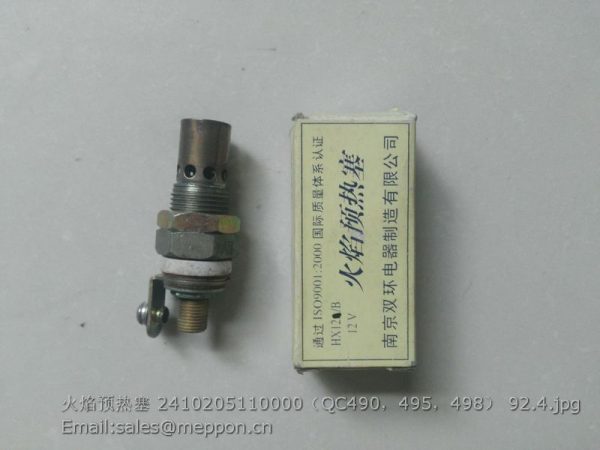

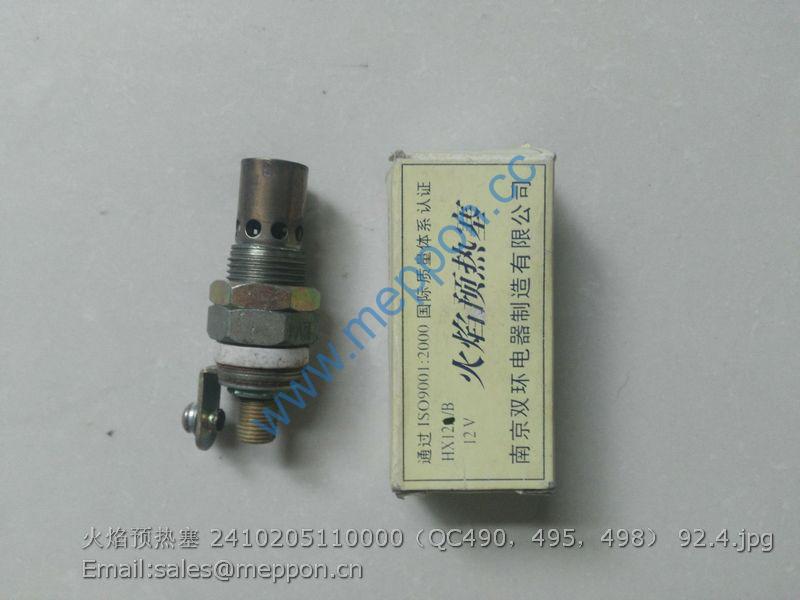

2410205110000 QC490 QC495 QC498 Plug of fire heater HX12B-000W

TS10490010000 Tool kit assembly 1
1 GBT 6170-M12-8-A3L Hexagon nut, style 1 2
2 TS10490010001 Mounting trestle weldment 1
3 FT65.49.103 Fixed support plate 1
4 GBT 97.1-12-A0P Plain washer 2
5 GBT 93-12-A0P Standard spring washer 2
6 GBT 5783-M12X30-8.8-A3L Hexagon head bolt 2
7 GBT 867-4X8 Round head rivet 4
8 FT65.49.101 Handle seat 2
9 FT65.49.115 Handle 1
10 FT300.49.012 Tool kit welding assembly 1
11 FT65.49.102 Plug pin 1

TS10501010000 Main oil tank assembly 1
1 TS10501010027 Main oil tank assembly 1
2 TS10501010022 Front limitation plate 1
3 TS10501010003 Main oil tank trestle weldment 1
4 GBT 5783-M8X25-A2-70 Hexagon head bolt 2
5 TS10501010023 Rear limitation plate 1
6 TS10501010021 Oil tank rubber pad 2
7 GBT 97.1-8-A0P Plain washer 2
8 GBT 93-8-A0P Standard spring washer 2
9 GBT 6170-M8-8-A2L Hexagon nut, style 1 2
10 TS10501010029 Lock cable ties weldment 2
11 FT800A.50.209 Main oil tank cable ties rubber strip 2
12 TS10501010020 Oil tank short rubber pad 2
13 GBT 6172.1-M10-04-A3L Hexagon thin nut 4
14 GBT 5783-M12X30-8.8-A3L Hexagon head bolt 2
15 GBT 93-12-A3L Standard spring washer 2
16 GBT 97.1-12-A3L Plain washer 2
17 TS10501010007 Main oil tank rear trestle weldment 1
18 GBT 96.1-10-A3L Large washer 4
19 GBT 93-10-A0P Standard spring washer 4
20 GBT 5783-M10X30-8.8-A3L Hexagon head bolt 4

TS10501010000 Main oil tank assembly 1
TS10501010027 Main oil tank assembly 1
1 TS10501010001 Main oil tank assembly 1
2 TD800.501A.1.1 Oil tank cover 1
3 FT300.50.015 Filter mesh assembly 1
4 Q676B16 C-type worm drive type hose clamp 2
5 TD800.501A.1-01 Breathing rubber pipe 1
6 TD800.501.1.1 Oil suction pipe weldment 1
7 JBT 982-22 Compound seal washer 1
8 JBT 982-16 Compound seal washer 1
9 FT65.50.226 Oil drainage screw plug 1

TS10503010000K Oil delivery pipeline assembly 1
1 FT65.50.106 Hollow bolt 2
2 JB/T 982-14 Compound seal washer 4
3 FT800A.50.162 Oil pipe joint 1
4 TS10503010003 Oil return pipe 1
5 Q676B16 C-type worm drive type hose clamp 2
6 TS10503010001K Oil delivery pipe assembly 1
7 TS10503010002 Oil filter fixing frame 1
8 GB/T 6170-M8-8-A2L Hexagon nut, style 1 2
9 GB/T 97.1-8-A0P Plain washer 4
10 GB/T 93-8-A0P Standard spring washer 2
11 GB/T 5783-M8×30-8.8-A2L Hexagon head bolt 2
12 TS10503010005 Diesel filter assembly 1
13 GB/T 5783-M8×20-8.8-A2L Hexagon head bolt 2
14 TF1004.504.1 Oil delivery pipe assembly 1
15 Q67405200 Plastic fastener 1

TD800.741 Front Ballast Bracket Assembly 1
1 GBT 5785-M18X1.5X70-A3L Bolt 6
2 GBT 93-18-AOP Spring Washer 6
3 GBT 97.1-18-AOP Flat Washer 6
4 TD800.741-01 Ballast Bracket 1
