Description

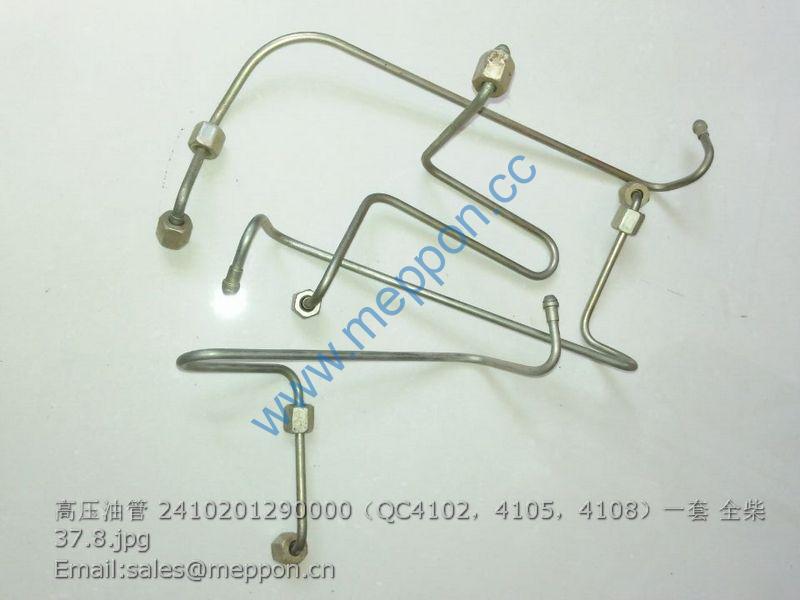

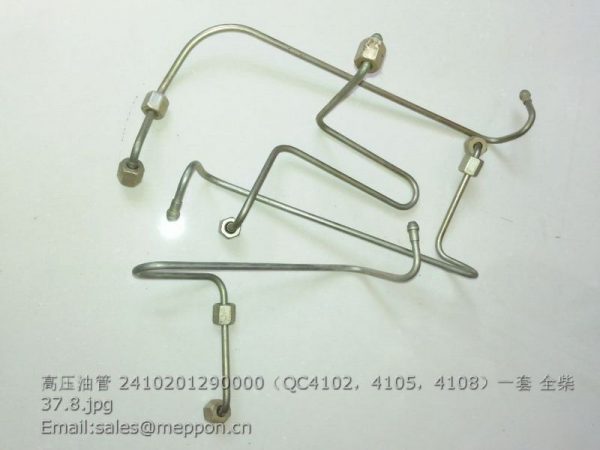

2410201290000 QC4102 QC4105 QC4108 4102Q-12900 Fuel injection pipe assembly

TC02311020000 Front Driving Axle Assembly 1
1 TC02311020001 Front Driving Axle Subassembly 1
2 FT400.31B.103 Washer 12
3 GBT6176-M14X1.5-10-A3L Hexagon Nut, Style 2 12
4 GBT93-14-A0P Standard Spring Washer 8
5 GBT5783-M14X45-10.9-A3L Hexagon Head Bolt 8

TC02311020000 Front Driving Axle Assembly 1
TC02311020001 Front Driving Axle Subassembly 1
1 TC02311020013 Right Side Final Transmission Assembly 1
2 TC02311010012 Adjusting Gasket 1
3 GBT119.1-12m6X22-A0P Column Pin 8
4 GBT93-12-A0P Standard Spring Washer 20
5 GBT5783-M12X40-10.9-A3L Hexagon Head Bolt 8
6 GBT6170-M12-10-A3L Hexagon Nut, Style 1 12
7 TC02311020003 Right Transmission Assembly 1
8 GBT899-GM12-M12X40-10.9-A3L Double-Ended Stud 12
9 TC02311010009 Rear Support Frame Assembly 1
9.1 TC02311010071 Rear Support Frame 1
9.2 GBT3452.1-45X3.55G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
9.3 TC02311010072 Sliding Bearing 1
9.4 JBT7940.1-M10X1 Straight Hydraulic Grease Nozzle 1
9.5 TD800.311C.1-01 Oil Cup Dustproof Cap 1
10 TC02311010017 Copper Pad 1
11 GBT3452.1-97.5X3.55G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
12 TC02311010002 Main Reducer Assembly 1
13 TC02311020010 Right Half Axle 1
14 GBT3452.1-48.7X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
15 TC02311010008 Front Support Frame Assembly 1
15.1 TC02311010066 Sliding Bearing 1
15.2 TC02311010067 Gasket 1
15.3 TC02311010065 Front Support Frame 1
15.4 TC02311010068 Seal Gasket 1
15.5 GBT6170-M16-8-A3L Hexagon Nut, Style 1 1
15.6 GBT5783-M16X50-8.8-A3L Hexagon Head Bolt 1
15.7 JBT7940.1-M10X1 Straight Hydraulic Grease Nozzle 1
15.8 TD800.311C.1-01 Oil Cup Dustproof Cap 1
16 GBT3452.1-136X3.55G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 2
17 TC02311010081 Adjusting Gasket 1
18 TC02311020009 Left Half Axle 1
19 TC02311020002 Left Side Transmission Assembly 1
20 TC02311020012 Left Side Final Transmission Assembly 1

TC02311020000 Front Driving Axle Assembly 1
TC02311020001 Front Driving Axle Subassembly 1
1 TC02311020007 Steering Cylinder Assembly 1
1.1 GBT91-3.2X40-AOP Split Pin 2
1.2 TC02311010075 Hexagon Slotted Nut 2
1.3 TC02311020011 Right Steering Link 1
1.4 GBT6173-M22X15-05-A3L Hexagon Thin Nut 2
1.5 TC02311010077 Connecting Ball Head 2
1.6 TC02311010084 Steering Cylinder 1
1.7 TC02311020008 Left Steering Link 1
2 TC02311010085 Cylinder Bracket 2
3 GBT93-12-A0P Standard Spring Washer 4
4 GBT5783-M12X35-10.9-A3L Hexagon Head Bolt 4
5 GBT75-M8X35-14H-A2L Slotted Set Screws With Long Dog Point 2
6 GBT93-8-A0P Standard Spring Washer 10
7 GBT6170-M8-8-A2L Hexagon Nut, Style 1 2
8 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 8
9 TC02311010015 Shield 2

TC02311020000 Front Driving Axle Ssembly 1
TC02311020001 Front Driving Axle Subssembly 1
TC02311020012 Left Final Transmission Assembly 1
TC02311020013 Right Final Transmission Assembly 1
1 TC02311020014 Front Driving Shaft 1
2 TC02311020015 Knurled Bolt 6
3 TC02311010032 Floating Oil Seal 2
4 GBT5783-M10X40-10.9-A3L Hexagon Head Bolt 8
5 GBT93-10-A0P Standard Spring Washer 8
6 TC02311010050 End Large Cover 1
7 TC02311010060 Adjusting Gasket Ⅰ 1
8 GBT276-6410 Deep Grooved Ball Bearing 1
9 TC02311020019 End Large Gear 1
10 GBT276-6310 Deep Grooved Ball Bearing 1
11 TC02311010055 Gasket 1
12 TC02311010054 Lock Piece 1
13 GBT5783-M10X30-10.9-A3L Hexagon Head Bolt 2
14 GBT3452.1-243X5.30G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
15 TC02311020020 End Small Gear 1
16 GBT276-6308 Deep Grooved Ball Bearing 1
17 TC02311010059 Adjusting Gasket Ⅱ 1
18 GBT893.1-90 Circlip For Hole 1
19 TC02311010058 Seal Cover 1
20 GBT893.1-102 Circlip For Hole 1
21 TD904.311K.1-13 Screw Plug 2
22 GBT3452.1-21.2X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 2
23 TC02311010047 Left Final Transmission Housing 1
TC02311010048 Right Final Transmission Housing 1
24 GBT301-51107 Thrust Ball Bearing 1
25 TC02311010057 Bushing 1
26 TC02311010056 End Spline Shaft 1
27 GBT6172.1-M16-04-A3L Hexagon Thin Nut 1
28 GBT5783-M16X40-10.9-A3L Hexagon Head Bolt 1

TC02311020000 Front Driving Axle Assembly 1
TC02311020001 Front Driving Axle Subassembly 1
TC02311020002 Left Side Transmission Assembly 1
TC02311020003 Right Side Transmission Assembly 1
1 TD800.311C.1-01 Oil Cup Dustproof Cap 1
2 JBT7940.1-M10X1 Straight Hydraulic Grease Nozzle 1
3 TC02311010041 Connecting Cover 1
4 GBT9877.1-FB65X85X10D Rubber Covered Rotary Shaft Lip Seal 2
5 GBT70.1-M8X25-8.8 Hexagon Socket Head Cap Screw 6
6 GBT93-8-A0P Standard Spring Washer 6
7 TC02311010044 Oil Seal End Cover 1
8 GBT3452.1-92.5X5.30G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
9 GBT276-6211 Deep Grooved Ball Bearing 1
10 TC02311010039 Bearing Gasket 1
11 TC02311020018 Driven Gear 1
12 TD904.311K.1-13 Screw Plug 1
13 GBT3452.1-21.2X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
14A TC02311020006 Right Half Axle Housing 1
14B TC02311020004 Left Half Axle Housing 1
15 TC02311020017 Driving Gear 1
16 GBT276-6309 Deep Grooved Ball Bearing 1
17 TC02311020005 Sleeve 1
18 TC02311010073 Adjusting Gasket 1
19 GBT893.1-100 Circlip For Hole 1
20 TC02311010074 Plug 2
21 TC02311010040 Adjusting Gasket 1
22 TC02311010043 Sliding Bearing 1
23 TC02311010042 Bushing 1
24 TD904.311K.1.6 Vent Plug 1

TC02311020000 Front Driving Axle Assembly 1
TC02311020001 Front Driving Axle Subssembly 1
TC02311010002 Main Reducer Assembly 1
1 TC02311010018 Differential Assembly 1
1.1 GBT70.1-M10X70-8.8 Hexagon Socket Head Cap Screw 6
1.2 GBT93-10 Standard Spring Washer 6
1.3 TC02311010027 Left Housing Of Differential 1
1.4 TC02311010030 Half Axle Gear Gasket 2
1.5 TC02311010035 Half Axle Gear 2
1.6 TC02311010033 Planetary Gear Shaft 1
1.7 TC02311010031 Planetary Gear Gasket 2
1.8 TC02311010034 Planetary Gear 2
1.9 GBT119.1-8h8X45-A0P Column Pin 1
1.10 GBT119.1-8h8X20-A0P Column Pin 2
1.11 TC02311010028 Right Housing Of Differential 1
2 GBT276-6216 Deep Grooved Ball Bearing 2
3 TC02311010026 Main Driven Bevel Gear Unit 1
3.1 TC02311010029 Central Transmission Big Bevel Gear 1
3.2 TC02311010020 Driving Bevel Gear Shaft 1
4 TC02311010019 Main Reducer Housing 1
5 TD904.311K.1-13 Screw Plug 1
6 GBT3452.1-21.2X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
7 TC02311010083 Driving Bevel Gear Shaft Adjsuting Gasket 1
8 GBT297-32208 Tapered Roller Bearing 2
9 TC02311010022 Spacing Sleeve 1
10 TC02311010023 Adjusting Ring 1
11 GBT893.1-80 Circlip For Hole 1
12 GBT9877.1-FB55X80X8D Rubber Covered Rotary Shaft Lip Seal 1
13 GBT3452.1-41.2X3.55G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
14 TC02311010025 Oil Seal Seat 1
15 GBT810-M36X1.5 Small Round Nut 2
16 GBT858-36 Thrust Washer Of Round Nut 1
17 TC02311010024 Spline Protection Sleeve 1
