Description

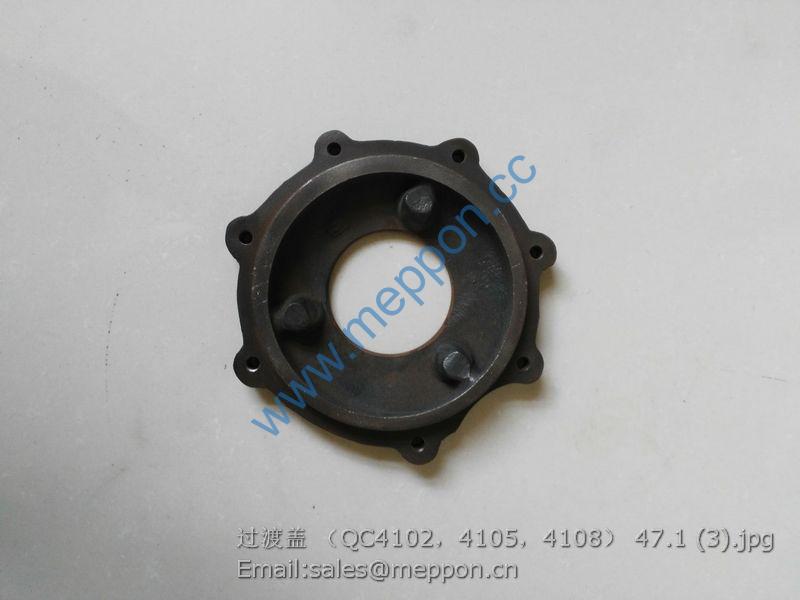

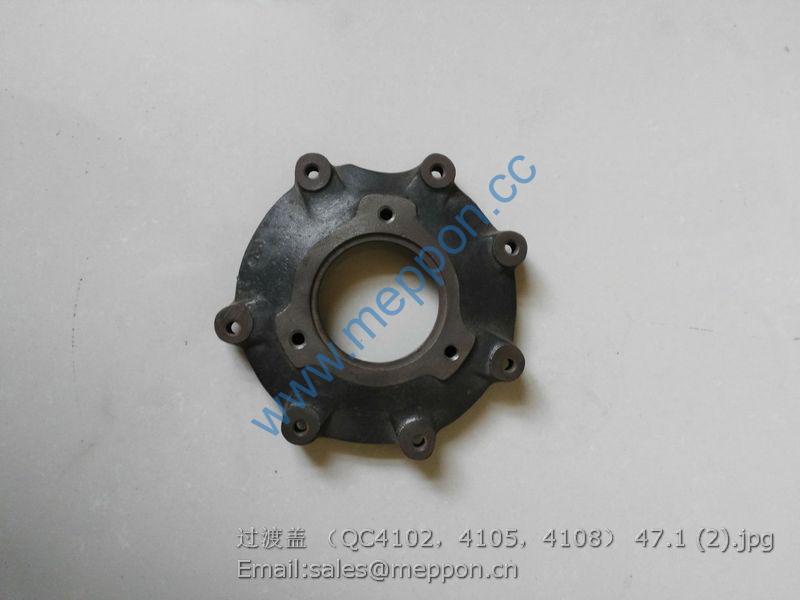

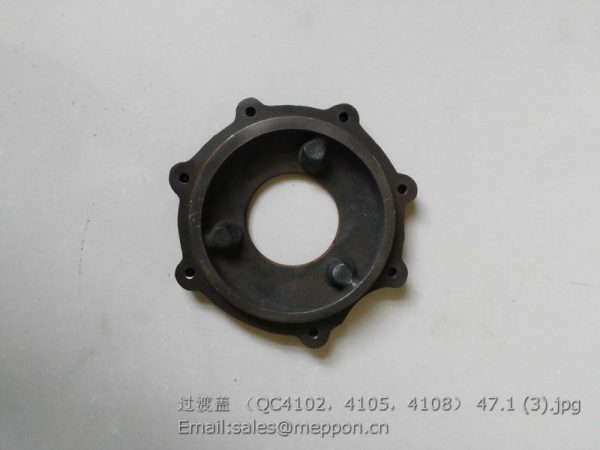

2410201200201 Transition cover 4102Q-12002-1 QUANCHAI PARTS

TS04433040000K Brake System Control Assembly 1
1 TB604.433E-01 Support Shaft 1
2 GBT879.1-5X40 Spring Column Pin 2
3 GBT879.1-8X40 Spring Column Pin 2
4 TB604.433E.3 Left Draw Arm Weldment 1
5 GBT882-B10X30-A3L Pin Shaft 3
6 FT300.43.110 Pull Rod Rear Fork 2
7 GBT97.1-10-A3L Flat Washer 4
8 GBT91-3.2X22-A3L Split Pin 4
9 TE354.433-03 Connecting Rod 1
10 GBT6170-M10-8-A3L Hexagon Nut, Type-1 1
11 TB604.433E-06 Dustproof Sleeve 1
12 TB604.433E.4 Rocker Unit Hub 1
13 GBT6170-M10-LH-8-A3L Hexagon Nut, Type-1 1
14 TB604.433E-03 Lower Pull Rod 1
15 TA700.431A-01 Dextrorotation Long Hole Connect Fork 1
16 TE250.212D-05 Clutch Pedal Return Spring 1
17 TB704.433.6 Left Return Spring Connecting Plate Weldment 1
18 TB704.433-04 Connecting Pin 1
19 TD800.311C.1-01 Dustproof Cap Of Oil Cup 1
20 FT300.43.108 Pull Rod Front Fork 2

TS04433040000K Brake System Control Assembly 1
1 TS04433010001 Controlling Handle Assembly 1
1.1 FT800A.21.319 Controlling Handle Sleeve 1
1.2 FT800A.21.045 Button Assembly 1
1.3 FT800A.21.315 Top Rod 1
1.4 FT800.43.180 Spring 1
1.5 FT800A.21.044 Controlling Handle Assembly 1
1.6 GBT68-M4X10-4.8-A2L Slotted Screw 4
1.7 FT800A.21.322 Small Pin Shaft 1
1.8 FT800A.21.314 Pawl 1
1.9 TS06212010003 Fixing Seat Weldment 1
1.10 TB604.433E.9-01 Short Pull Rod 1
1.11 GBT894.1-6 Circlip For Shaft 1
1.12 FT800A.21.323 Pin 1
1.13 FT800A.21.321 Pin Shaft 1
1.14 GBT894.1-13 Circlip For Shaft 2
1.15 FT800A.43.310 Ratchet Wheel 1
1.16 TS06212010009 Washer 2
2 GBT5783-M8X20-8.8-A2L Hexagon Bolt 4
3 GBT93-8-A3L Standard Spring Washer 4
4 GBT97.1-8-A3L Flat Washer 5
5 TS04433010006 Right Brake Pull Wire Assembly 1
6 GBT882-B8X40-A3L Pin Shaft 2
7 TB604.433E-04 Small Retainer Ring 2
8 TB604.433E.6 Left Pull Wire Support Seat Weldment 1
9 GBT93-10-A3L Standard Spring Washer 2
10 GBT5783-M10X20-8.8-A3L Hexagon Bolt 2
11 GBT91-3.2X22-A3L Split Pin 2
12 TS04433010007 Left Brake Wire Assembly 1
13 TA700.431A-01 Dextrorotation Long Hole Connect Fork 2
14 GBT882-B10X30-A3L Pin Shaft 1
15 GBT97.1-10-A3L Flat Washer 2
16 TS04433010002 Dustproof Mat 1

TS04801010000K Air Valve Brake Assembly 1
1 GBT882-B10X28-A0P Pin Shaft 1
2 FT300.80.105 Adjusting Fork 1
3 GBT6170-M10-8-A3L Hexagon Nut, Style 1 1
4 TS04801010002 Brake Valve Adjusting Pull Rod Subassembly 1
5 Q617B14 Hexagon Head Screw Plug 1
6 JBT982-14 Compound Seal Washer 1
7 GBT96.1-8-A0P Large Washer 3
8 GBT848-10-A0P Small Washer 3
9 GBT91-3.2X16-A0P Split Pin 2
10 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 3
11 GBT93-8-A0P Standard Spring Washer 5
12 TS04801010004 Brake Valve Installation Bracket Weldment 1
13 FT300.80.011 Air Brake Valve Assembly 1
14 GBT97.1-8-A0P Plain Washer 2
15 GBT5783-M8X30-8.8-A2L Hexagon Head Bolt 2

TS04802010000K Gas Holder Installation Assembly 1
1 GBT5783-M12X30-8.8-A3L Hexagon Head Bolt 2
2 GBT93-12-A0P Standard Spring Washer 2
3 GBT96.1-12-A0P Large Washer 2
4 TS04802010001K Gas Holder Weldment 1
5 FT300.80.034 Safety Valve Assembly 1
6 FT300.80.033 Water Drainage Valve Assembly 1
7 TC02484060001K Air Pressure Alarm 1
