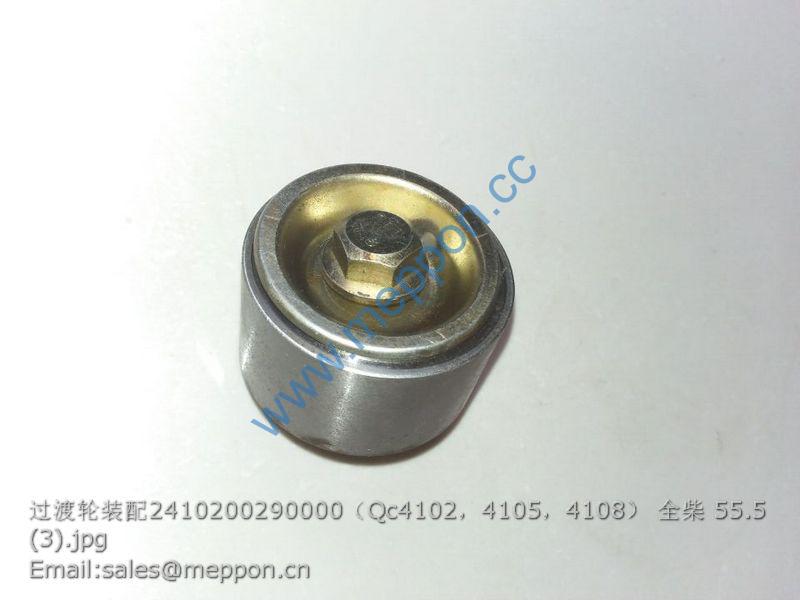

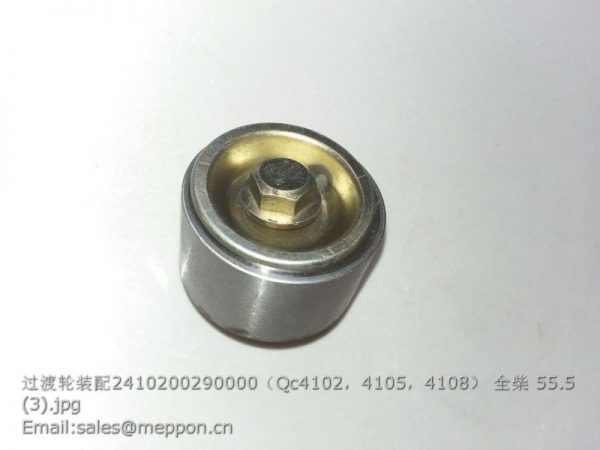

2410200290000 Qc4102 QC4105 QC4108 Transitional wheel assembly 4102T-02100

Description

2410200290000 Qc4102 QC4105 QC4108 Transitional wheel assembly 4102T-02100

TS04803030000K Air Conveying Pipeline Assembly 1
1 FT65.50.106 Hollow Bolt 1
2 JBT982-14 Combined Seal Gasket 2
3 TS04803010003K Air Conveying Pipe Assembly 1
4 Q67405200 Plastic Fastening Strip 4
5 GBT6173-M18X1.5-05-A3L Hexagon Thin Nut 2
6 TS04803030001K Connector Mounting Plate 1
7 TD800.803D-01 Output Joint 2
8 TD800.803D.1 Quick Joint 2
9 GBT16674.1-M6X12-8.8-A2L Hexagon Flange Nut 2
10 TS04803010005K Air Conveying Pipe Assembly 1
11 TS04803010006 Brake Valve Air Intake Pipe Subassembly 1
12 TD800.803-07 Tighten Clip 1
13 GBT5783-M10X20-8.8-A3L Hexagon Bolt 2
14 GBT93-10-A3L Standard Spring Washer 2
15 GBT97.1-10-A3L Flat Washer 2
16 GBT5783-M8X35-8.8-A2L Hexagon Bolt 1
17 TS04803010007 Pipe Clamp Bracket 1
18 TB454.40X-01 Single Hole Pipe Clamp 2
19 GBT93-8-A3L Standard Spring Washer 1
20 GBT6170-M8-8-A2L Hexagon Nut, Type-1 1
21 TS04803010004 Air Reservoir Intake Pipe Subassembly 1
22 TE350.80A-01 Pipe Clamp 1
23 TS04803010001K Air Compressor Outlet Pipe Assembly 1

TB400.35C Towing Mechanism Installation Assembly 1
1 GBT5783-M16X60-A3L Bolt 8
2 GBT93-16-A0P Washer 8
3 GBT6170-M16-A3L Nut 8
4 TB400.35C.1 Towing Mechanism Assembly 1
4.1 FT65.53.103 Spring Locking Pin 1
4.2 TB400.35.1.1 Location Pin And Lock Pin Assembly 2
4.3 TB400.35C.1.1 Traction Frame Weldment 1
4.4 FT300.35A.103 Connecting Pin 1
4.5 TB400.35C.1-01 Swing Rod 1
4.6 TB400.35.1-03 Bolt 2
4.7 TB400.35.1.2 Traction Pin And Lock Pin Assembly 1
4.8 TB400.35.1-02 Connecting Swing Rod 1
4.9 GBT93-16-A0P Washer 2
4.10 GBT6170-M16-A3L Nut 2
5 GBT827-3X8 Rivet 2
6 TB400.35-01 Traction Mark Plate 1

TC02530010000K Up-Down Adjustable Traction Connector 1
1 TA700.53C.1.3 Trailer Pin And Lock Pin Assembly 2
1.1 TA700.53C.1.3.1 Trailer Pin Weldment 1
1.2 TD800.35A.1.1.1 Lock Pin And Chain Assembly 1
2 FT300.56.029 Lock Pin Assembly 1
3 TB400.53B.1 Trailing Device Assembly Weldment 1
4 FT300.53.101a Connecting Pin 2
5 TC02530010001K Trailing Identification Label 2
6 GBT827-3X8-A0P Label Rivet 1

TC02551050000K Lifter Assembling Assembly 1
1 GBT6170-M10-8-A3L Hexagon Nut, Style 1 2
2 GBT93-10-A0P Standard Spring Washer 2
3 TB504.551F.1 Bracket Weldment 1
4 GBT70.1-M10X45-8.8 Hexagon Socket Button Head Screw 2
5 TB504.551F.4 Oil Return Filter Assembly 1
6 JBT982-22 Compound Seal Washer 6
7 FT300.58.101 Hollow Bolt 3
8 TB504.551F.3 Oil Filter Return Pipe Assembly 1
9 TC04550090001 Oil Filter Inlet Pipe Assembly 1
10 GBT3452.1-25.8X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
11 GBT93-8-A0P Standard Spring Washer 2
12 GBT5783-M8X30-8.8-A2L Hexagon Head Bolt 2
13 TC02551050002K Lifter Assembly 1
14 GBT5783-M12X40-10.9 Hexagon Head Bolt 3
15 TB404.312B-01 Washer 7
16 FT300.55B.136 Bolt M12x235 2
17 TB300.55-01 Double-Headed Stud M12x250 2
18 GBT5783-M12X100-10.9-A3L Hexagon Head Bolt 2
19 GBT16674.1-M12X50-10.9-A2L Hexagon Flange Bolt 4
20 GBT5783-M8X30-10.9-A2L Hexagon Head Bolt 2
21 TB300.55-02 Washer 2
22 GBT3452.1-103X2.65G O-Ring 1
23 SPL-CO-M12-10-F3 Hexagon Flange Nut 2

TS04552010000 Raiser Control Assembly 1
1 TS04552010011 Raiser Control Handle Head 2
2 GBT6170-M10-8-A3L Hexagon Nut, Style 1 2
3 TS04552010010 Raiser Control Assembly 1
3.1 TS04552010002 Raiser Control Press 1 1
3.2 GBT894.1-20 Circlip For Shaft 2
3.3 TS04552010001 Fixing Shaft 1
3.4 TS04552010007 Raiser Control Press 2 1
4 GBT882-B8X30-A0P Pin Shaft 4
5 GBT97.1-8-A0P Plain Washer 4
6 GBT91-3.2X16-A0P Cotter Pin 4
7 TS04552010012 Adjusting Lever Assembly 2
7.1 TB504.552D.3-03 Righthand Connecting Fork 1
7.2 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
7.3 TS04552010013 Control Pull Rod 1
7.4 GBT6170-M8-LH-8-A2L Hexagon Nut, Style 1 1
7.5 TB504.552D.3-02 Lefthand Connecting Fork 1
8 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
9 GBT93-8-A0P Standard Spring Washer 2

TC02553050000K Hydraulic Auxiliary Oil Tank Assembly 1
1 TC02553050001K Auxiliary Oil Tank Weldment 1
2 TS04553010031 Oil Dipstick Assembly 1
3 FT65.55.139 Hollow Bolt 1
4 JBT982-27 Compound Seal Washer 1
5 Q67512 A-Type Worm Drive Type Hose Clamp 2
6 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 4
7 GBT93-10-A0P Standard Spring Washer 4
8 GBT97.1-10-A0P Plain Washer 4
9 TC02553050004K Breathing Pipe 1
10 Q67645 B-Type Worm Drive Type Hose Clamp 2
11 TB504.553-01 Connecting Hose 1
12 GBT70.1-M8X20-8.8-A2L Hexagon Socket Head Cap Screw 1
13 GBT93-8-A0P Standard Spring Washer 2
14 TS04553010013 Oil Tank Connecting Pipe Weldment 1
15 GBT3452.1-34.5X1.80G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
16 TB400.553.4 Vent Joint Weldment 1
17 JBT982-14 Compound Seal Washer 1
18 GBT70.1-M8X20-10.9 Hexagon Socket Head Cap Screw 1
