Description

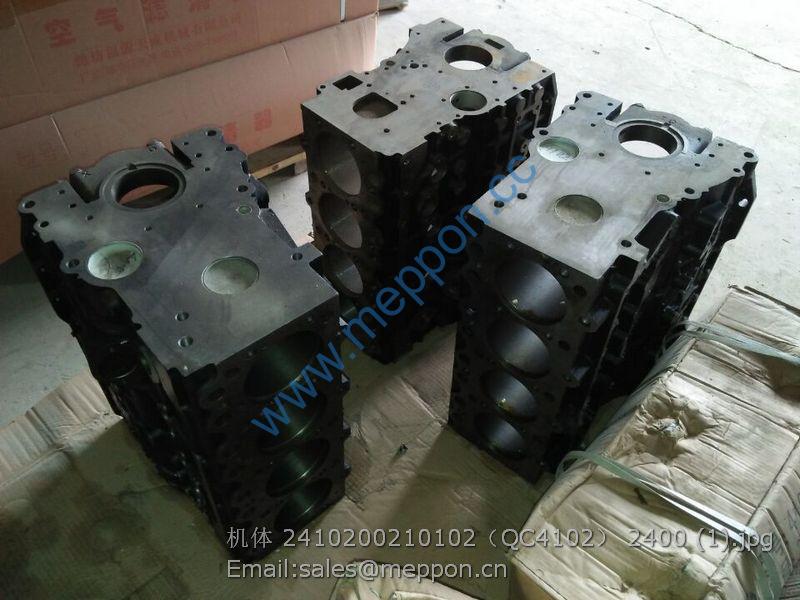

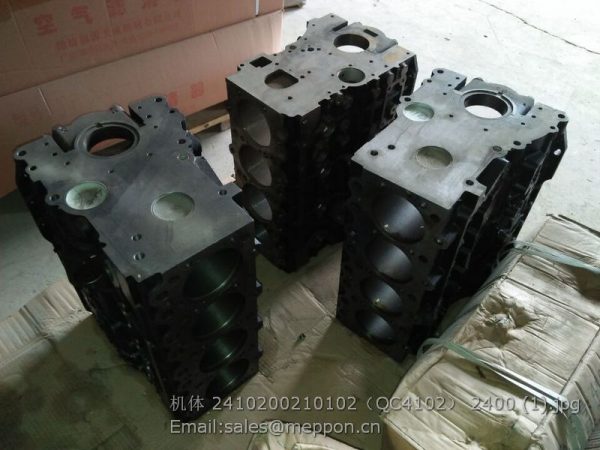

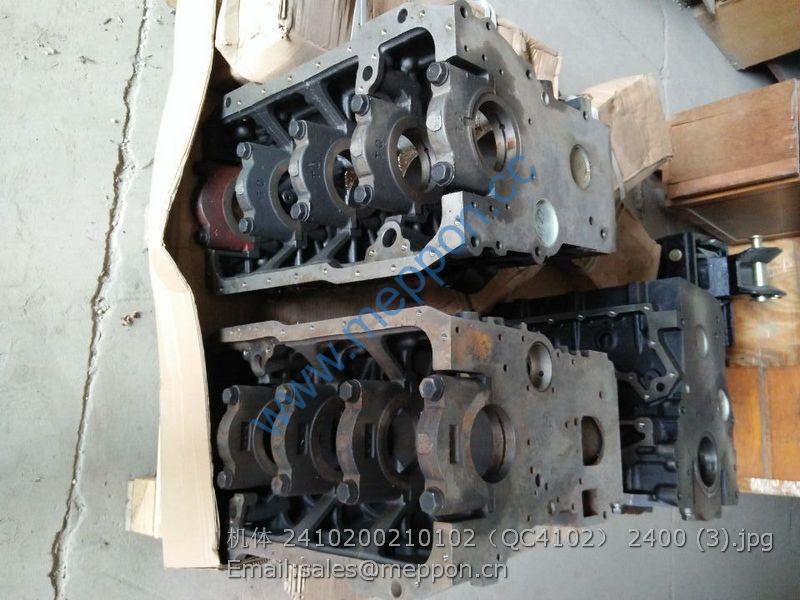

2410200210102 QC4102 Cylinder block 4102QA-02101A

TD800.742 Front counterweight assembly 1
1 GBT 5785-M20X1.5X80-A3L Bolt 2
2 GBT 93-16-A0P Spring washer 8
3 GBT 97.1-16-A0P Washer 8
4 FT700.74B.010 Right fixing block welding assembly 1
5 GBT 5783-M16X35-A3L Bolt 8
6 FT700.74B.011 Left fixing plate welding assembly 1
7 TD800.742.2 Small front counterweight assembly 1
7.1 TD800.742-02 Counterweight 11
7.2 F700.74B.107 Bolt 1
7.3 GBT 97.1-16-A0P Washer 2
7.4 GBT 93-16-A0P Spring washer 2
7.5 GBT 6170-M16-A3L Nut 2
8 GBT 97.1-20-A0P Washer 2
9 FT650.74.108 Towing nut 2
10 TD800.742-01 Towing lug 1
11 TB400.74A.2 Towing pin and lock pin assembly 1
11.1 TB400.74A.2.1 Towing pin welding 1
11.2 TA700.35A.1.1-01 Adapter ring 1
11.3 FT65.56.136 Small link 8
11.4 FT800.56.223 Lock pin ring 1
11.5 FT800.56.224 Lock pin 1

FT800.91B.001 Rear Ballast Assembly 1
1 GBT 5783-M16X40-A3L Bolt 6
2 GBT 93-16-AOP Washer 12
3 FT800.34.108 Flat Washer 12
4 FT804.91.105 Rear Ballast 2
5 FT804.91.102 Ballast Screw II 6
6 FT800.91B.103 Rear Ballast II 2
7 FT804.91.101 Ballast Screw I 6
8 GBT 97.1-16-AOP Flat Washer 6
9 GBT 6170-M16-A3L Nut 6

TS10481020000K Harness installation assembly, engine 1
1 FT800.48L.108a Fastening clip 2
2 GB/T 97.1-10-A0P Plain washer 2
3 GB/T 93-10-A0P Washer 2
4 GB/T 5783-M10×20-A3L Bolt 2
5 FT65.48.072 Water temperature sensor 1
6 FT800.48L.107 Grommet 2
7 TS10481010002 Rotating speed sensor 1
8 FT800.48L.106 Wire sleeve 1
9 TS10481020001K Engine harness assembly 1
10 FT65.48.073a Oil pressure sensor 1
11 TF1204.481B-01 Harness fastener 1
12 Q67405100 Plastic fastening belt 5

TS10482020000K Body harness installation assembly 1
1 FT65.48.652 Four-function rocker switch (2) 1
2 GB/T 6170-M6-8-A2L Hexagon nut, style 1 6
3 GB/T 93-6-A0P Standard spring washer 6
4 GB/T 97.1-6-A0P Plain washer 6
5 TS10482010002 Central electric box assembly 1
6 GB/T 818-M6×25-4.8-A2L Cross recessed pan head screw 4
7 TB550.484.2 Brake lamp switch 2
8 GB/T 68-M4×35-4.8-A1L Slotted countersunk head screw 2
9 FT800.48B.068 Work lamp socket 1
10 GB/T 97.1-4-A0P Plain washer 2
11 GB/T 6170-M4-8-A2L Hexagon nut, style 1 2
12 TS10482020001K Body harness assembly 1
13 Q67405200 Plastic fastener 8
14 GB/T 5783-M6×16-A2L Hexagon head bolt 2
15 FT300.48.055 Starting relay 1
16 TD900.482A.1 Left rocker switch 1
17 TB550.482.3 Ignition lock 1
18 FT800.48B.069 Charger socket 1
19 TF1004.482-01 Rubber ring 3
