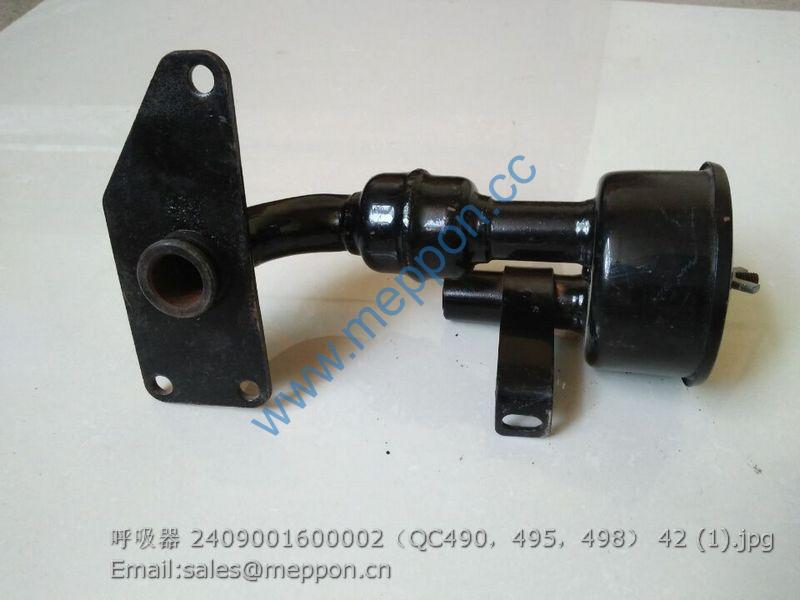

2409001600002 QC490 QC495 QC498 BREATHER

TS04475010000K Engine Hood Sealing Assembly 1
1 TS04475030002 Hood Upper Seal Cotton 1
2 TS04475030001 Hood Side Seal Strip 2
3 TS04475010004K Hood Upper Seal Strip 1
4 TS04475010003K Seal Spacing Plate 1
5 TS04475010005K Hood Side Seal Strip 2
6 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 2
7 GBT97.1-8-A0P Plain Washer 4
8 GBT93-8-A0P Standard Spring Washer 2
9 GBT6170-M8-8-A2L Hexagon Nut, Type 1 2

TB400.475A Left Front Mudguard Assembly 1
1 GBT5783-M10X35-8.8-A3L Hex Bolt 2
2 GBT93-10-A0P Standard Spring Washer 6
3 GBT97.1-10-A0P Flat Washer 10
4 TB400.475A-04 Strenghtening Plate 3
5 GBT5783-M10X30-8.8-A3L Hex Bolt 4
6 TB400.475A-03 Left Front Mudguard 1
7 TB400.475A.2 Left Upper Bracket Weldment 1
8 GBT6170-M10-8-A3L Type 1 Hex Nut 5
9 GBT5783-M12X40-8.8-A3L Hex Bolt 4
10 GBT93-12-A0P Standard Spring Washer 5
11 GBT97.1-12-A0P Flat Washer 2
12 GBT5783-M12X30-10.9-A3L Hex Bolt 1
13 TB400.475-07 Washer 2 1
14 TB400.475A.3 Left Lower Bracket Weldment 1
15 TB400.475A-01 Bushing 1
16 TB400.475A-02 Left Torsion Spring 1
17 TB400.475-06 Washer 1
18 TB400.475A.1 Left Installation Plate Weldment 1
19 JBT7940.1-M10X1 Press Filling Oil Cup 1
20 GBT5783-M8X45-8.8-A2L Hex Bolt 1
21 GBT6170-M8-8-A2L Type 1 Hex Nut 1
22 GBT5783-M10X55-8.8-A2L Hex Bolt 1

TB400.476A Right Front Mudguard Assembly 1
1 GBT5783-M10X35-8.8-A2L Hex Bolt 2
2 GBT93-10-AOP Standard Spring Washer 6
3 GBT96.1-10-A2 Flat Washer 10
4 TB400.475A-04 Strenghtening Plate 3
5 GBT5782-M10X30-8.8-A3L Hex Bolt 4
6 TB400.475A-03 Left Front Mudguard 1
7 TB400.476A.2 Right Upper Bracket Weldment 1
8 GBT6170-M10-8-A3L Type 1 Hex Nut 5
9 GBT5783-M12X40-8.8-A3L Hex Bolt 4
10 GBT93-12-AOP Standard Spring Washer 5
11 GBT97.1-12-AOP Flat Washer 2
12 TB400.476A.3 Right Lower Bracket Weldment 1
13 JBT7940.1-M10X1 Press Filling Oil Cup 1
14 GBT5783-M12X30-10.9-A3L Hex Bolt 1
15 TB400.475-07 Washer 2 1
16 TB400.475A-01 Bushing 1
17 TB400.475-06 Washer 1
18 TB400.476A-01 Right Torsion Spring 1
19 GBT6170-M8-8-A2L Type 1 Hex Nut 1
20 TB400.476A.1 Right Installation Plate Weldment 1
21 GBT5783-M8X45-8.8-A2L Hex Bolt 1
22 GBT5783-M10X55-8.8-A3L Hex Bolt 1

TS04490010000 Tool Kit Assembly 1
1 TB400.49.1 Tool Kit Supply Assembly 1
1.1 TB400.49.1.1 Tool Kit Welding And Riveting Assembly 1
1.2 FT65.49.103 Fixing Plate 1
1.3 FT65.49.102 Latch 1
2 GBT5783-M12X25-8.8-A3L Hexagon Head Bolt 2
3 GBT93-12-A0P Standard Spring Washer 2
4 GBT97.1-12-A0P Plain Washer 2
5 TS04490010003 Installation Bracket Weldment 1

TS04501010000K Oil Tank Installation Assembly 1
1 GBT93-10-A3L Standard Spring Washer 2
2 GBT5783-M10X20-8.8-A3L Hexagon Bolt 2
3 TB604.501.2 Rear Bracket Weldment 1
4 TB604.501-01 Rubber Washer 1
5 TB604.501-02 Tie Rubber Strip 1
6 TS04501010008 Rear Fastening Tie Weldment 1
7 GBT6170-M10-8-A3L Hexagon Nut, Type-1 4
8 TS04501010009 Tie Rubber Strip 1
9 TS04501010003 Front Band Weldment 1
10 TS04501010001 Oil Tank Assembly 1
