Description

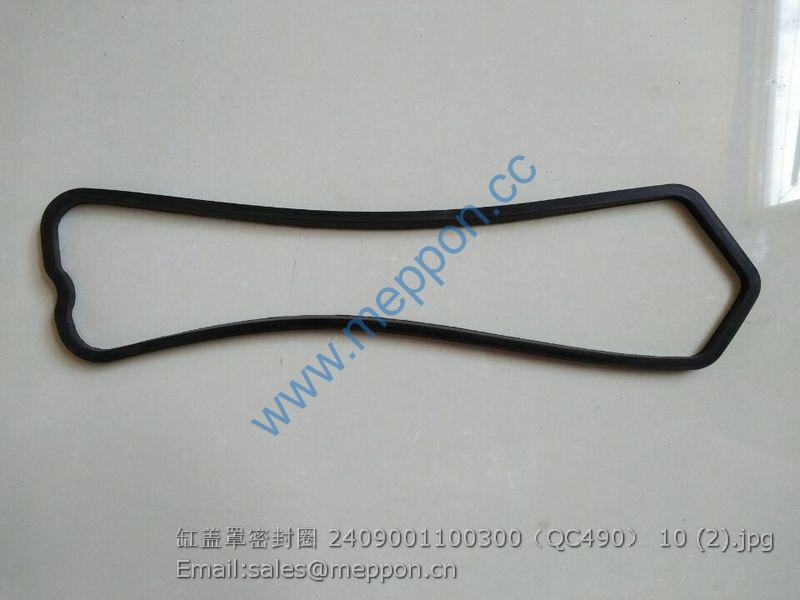

2409001100300 QC490 QUANCHAI CYLINDER HEAD COVER GASKET SP127205

1 TS04110050000K Air Cleaner Assembly 2
2 TS04131060000K Cooling System Assembly 4
3 TS04132030000K Water Tank Base Plate Mounting Assembly 6
4 TS04201010000 Hand Throttle Control Assembly 8
5 TS04202010000 Foot Throttle Control Assembly 10
6 TS04203010000K Throttle Wire Assembly 12
7 TS04220020000 Exhaust System Assembly 14
B Drive line part
8 TB550.211A Clutch Subassembly (003) 16
9 TS04212030000K Clutch Control Assembly(001) 18
10 TB604.371 Gearbox Housing Assembly 20
11 TB604.372T Main Transmission Assembly-1 22
12 TB604.372T Main Transmission Assembly-2 24
13 TB604.373T Gearbox Assistant Gear Assembly 26
14 TS04374010000 Gearbox Control Mechanism Assembly-1 28
15 TS04374010000 Gearbox Control Mechanism Assembly-2 30
16 TS04374010000 Gearbox Control Mechanism Assembly-3 32
17 TS04374010000 Gearbox Control Mechanism Assembly-4 34
18 TB604.375B Breather assembly 36
19 TB554.381 Shuttle Shift Assembly 38
20 TB504.382 Rear Axle Central Transmission Assembly-1 40
21 TB504.382 Rear Axle Central Transmission Assembly-2 42
22 TS04383010000 Differential Lock Control Mechanism Assembly 44
23 TC02384010000K Rear Axle Housing Assembly 46
24 TS04385010000 Shuttle Shift Control Mechanism Assembly 48

25 TB450.391 Left Final Transmission Assembly 50
26 TB450.392 Right Final Transmission Assembly 52
27 TC02411010000K PTO Gear Assembly 54
28 TB550.412A PTO Shaft Assembly 56
29 TS04413010000 PTO Control Assembly 58
30 TB554.421E Transfer Case Body Assembly 60
31 TB554.421E Transfer Case Body Assembly (extention) 62
32 TB454.422 Transfer Case Transmission Assembly 64
33 TS04423010000K Transfer Case Control Assembly 66
C Front axle (shaft) part
34 TC02311020000 Front Driving Axle Assembly-1 (003) 68
35 TC02311020000 Front Driving Axle Assembly-2 (003) 70
36 TC02311020000 Front Driving Axle Assembly-3 (003) 72
37 TC02311020000 Front Driving Axle Assembly-4 (003) 74
38 TC02311020000 Front Driving Axle Assembly-5 (003) 76
39 TC02311020000 Front Driving Axle Assembly-6 (003) 78
40 TB554.312 Front Bracket Assembly 80
D Running system part
41 FT404.32F.001 Front Driving Wheel Assembly 82
42 FT404.34F.001 Rear Driving Wheel Assembly 84
E Steering system part
43 TC04401080000 Steering Gear and Steering Column Assembly 86
44 TC02402200000K Fully Hydraulic Steering Pipeline Assembly-1 88
45 TC02402200000K Fully Hydraulic Steering Pipeline Assembly-2 90
F Braking system part
46 TB504.431B Left Brake Assembly 92

47 TB504.432B Right Brake Assembly 94
48 TS04433040000K Brake System Control Assembly-1（001） 96
49 TS04433040000K Brake System Control Assembly-2（001） 99
50 TS04433040000K Brake System Control Assembly-3（001） 100
51 TS04801010000K Air Valve Brake Assembly 102
52 TS04802010000K Gas Holder Installation Assembly 104
53 TS04803030000K Air Conveying Pipeline Assembly(001) 106
G Hydraulic hitch and work device
54 TB400.35C Towing Mechanism Installation Assembly 108
55 TC02530010000K Up-down Adjustable Traction Connector 110
56 TC02551050000K Lifter Assembling Assy 112
57 TS04552010000 Raiser Control Assembly 114
58 TC02553050000K Hydraulic Auxiliary Oil Tank Assembly 116
59 TC02561060000K Hitch Assembly-1 118
60 TC02561060000K Hitch Assembly-2 120
61 TC02581130000K Oil Pump/Pine/Filter Assembly (002) 122
62 TC02582090000K Multi-way valve oil pipe assembly (001) 124
63 TB300.583A Single-Way Hydraulic Outlet Assembly 2 126
H Cab, driver’s seat, covering panel, etc
64 TS04441010000K Seat Installation Assembly (001) 128
65 TS04452010000 Floor Assembly-1 130
66 TS04452010000 Floor Assembly-2 132
67 TS04452010000 Floor Assembly-3 134
68 TS04453020000 Upholstery Assembly 136
69 TS04454010000 Control Cover Assembly 138
70 TS04455020000 Rear Mudguard Trimming Assembly 140
71 TS04456020000 Instrument Panel Assembly 142

72 TS04457010000K Front Connection Assembly 144
73 TS04458010000 Rear Connection Assembly 146
74 TS04461010000K Safety Frame Assembly (002) 148
75 TS04471010000K Bonnet Assembly-1 150
76 TS04471010000K Bonnet Assembly-2 152
77 TS04471010000K Bonnet Assembly-3 154
78 TS04473010000 Bonnet Lock Mechanism Assembly 156
79 TS04475010000K Engine Hood Sealing Assembly 158
80 TB400.475A Left Front Mudguard Assembly 160
81 TB400.476A Right Front Mudguard Assembly 162
82 TS04490010000 Tool Kit Assembly 164
83 TS04501010000K Oil Tank Installation Assembly-1(001) 166
84 TS04501010000K Oil Tank Installation Assembly-2(001) 168
85 TS04503010000 Fuel Tank Fitting Assembly 170
86 TA600.62 Safety Belt Assembly 172
87 TC02740010000K Front Ballast Assembly 174
88 TS04741010000K Front Ballast Frame Assembly 176
89 FT300.91.001 Rear Ballast Assembly 178
J Electrical and accessory parts
90 TS04481030000K Harness Installation Assembly, Engine 180
91 TS04482010000K Harness Installation Assembly, Body (001) 182
92 TS04483020000K Harness Installation Assembly, Front Lamp 184
93 TS04484040000K Harness Installation Assembly, Rear Lamp (002) 186
94 TS04484040000K Harness Installation Assembly, Rear Lamp (002) (extension) 188
95 TS04485010000 Battery Installation Assembly 190
96 TS04487010000 Combination Instrument Assembly 192
97 TB550.489 Preheating Device Assembly 194

TS04110050000K Air Filter System Assembly 1
1 Q67676 Hoop, Worm Drive Hose, Type B 2
2 TS04110050001K Air Intake Hose 1
3 TB400.11.1 Air Filter Assembly 1
4 GBT5789-M8X16-8.8-A2L Hexagon Flange Bolt 4
5 TB500.11B.2 Air Filter Bracket 1
6 TD900.11A-01 Air Filter Maintenance Indicator 1
