Description

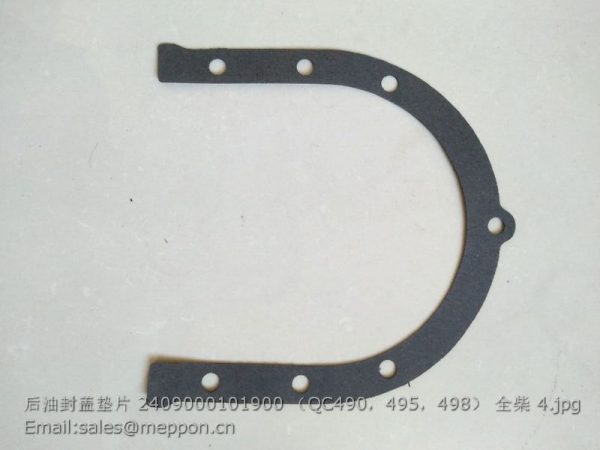

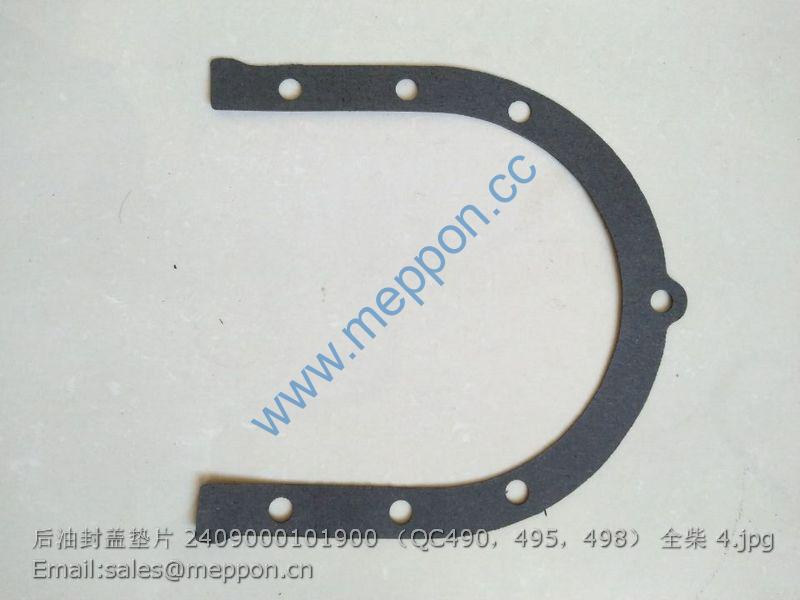

2409000101900 QC490 QC495 QC498 QC490Q(DI)-01019 REAR OIL SEAL COVER GASKET

TS04455020000 Rear Mudguard Trimming Assembly 1
1 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 10
2 GBT93-8-A3L Standard Spring Washer 10
3 GBT97.1-8-A3L Plain Washer 10
4 TS04454019000 Right Rear Mudguard Trimming Assembly 1
5 TS04454018000 Left Rear Mudguard Trimming Assembly 1

TS04456020000 Instrument Panel Assembly 1
1 TS04456010002 Instrument Panel Upper Cover 1
2 TS04456010003 Instrument Panel Middle Cover 1
3 TS04456010004 Instrument Panel Lower Cover 1
4 GBT97.1-6-O Plain Washer 11
5 GBT93-6-O Standard Spring Washer 17
6 GBT845-ST4.8X16-O Cross Recessed Pan Head Tapping Screw 4
7 GBT818-M6X20-4.8-O Cross Recessed Pan Head Screw 13
8 GBT96.1-6-O Big Washer 6
9 GBT818-M6X16-4.8-O Cross Recessed Pan Head Screw 6
10 TS06456010008 Right Cover Plate Of Steering Gear 1
11 TS06456010007 Left Cover Plate Of Steering Gear 1
12 TS04456010006 Lower Cover Plate Of Steering Gear 1

TS04457010000K Front Connection Assembly 1
1 GBT5783-M16X90-10.9-A2L Hexagon Head Bolt 2
2 GBT96.1-16-A0P Large Washer 2
3 TB400.457B-02 Circlip 4
4 TB400.457B-01 Shock Absorbing Block 2
5 TS04457040004 Right Front Connection Weldment 1
6 GBT5783-M12X35-10.9-A3L Hexagon Head Bolt 10
7 GBT93-12-A0P Standard Spring Washer 10
8 GBT97.1-12-A0P Plain Washer 10
9 GBT93-16-A0P Standard Spring Washer 2
10 GBT6170-M16-10-A3L Hexagon Nut, Style 1 2
11 TS04457010001K Left Front Connection Weldment 1
12 TS04457010023 Rubber Ring 2

TS04458010000 Rear Connection Assembly 1
1 GBT5783-M16X90-10.9-A2L Hexagon Head Bolt 2
2 GBT96.1-16-A0P Large Washer 2
3 TB400.457B-02 Circlip 4
4 TB400.457B-01 Shock Absorbing Block 2
5 TS04458010001 Rear Connection Weldment 2
6 GBT93-16-A0P Standard Spring Washer 2
7 GBT6170-M16-10-A3L Hexagon Nut, Style 1 2
8 FT400.46.350 U-Bolt 4
9 GBT97.1-14-A0P Plain Washer 8
10 GBT6170-M14-8-A3L Hexagon Nut, Style 1 16

TS04461010000K Safety Frame Assembly 1
1 TB400.46C.3 Sunshade Assembly 1
1.1 GBT5783-M6X25-8.8-A2L Hexagon Head Bolt 12
1.2 GBT93-6-A0P Standard Spring Washer 12
1.3 GBT97.1-6-A0P Plain Washer 12
1.4 TE254.46.2.1-02 Rubber Washer 12
1.5 TB400.46C.3.1 Sunshade 1
1.6 GBT6170-M10-8-A3L Hexagon Nut, Type 1 4
1.7 GBT93-10-A0P Standard Spring Washer 4
1.8 FT400.46.021 Washer Subassembly 4
1.9 TB400.46C.3.3 Sunshade Fixing Frame Weldment 1
1.10 GBT818-M10X30-4.8-A3L Cross Recessed Pan Head Screw 4
1.11 TB400.46C.3-01 Fixing Frame 2
1.12 GBT6170-M12-10-A3L Hexagon Nut, Type 1 4
1.13 GBT93-12-A0P Standard Spring Washer 4
1.14 GBT96.1-12-A3L Large Washer 4
1.15 GBT97.1-12-A0P Plain Washer 4
1.16 GBT5782-M12X110-10.9-A2L Hexagon Head Bolt 4
1.17 GBT96.1-8-A3L Large Washer 4
1.18 GBT93-8-A0P Standard Spring Washer 4
1.19 GBT5783-M8X20-10.9-A2L Hexagon Head Bolt 4
2 TB400.46C-01 Plug Cover 4
3 GBT5783-M16X90-8.8-A2L Hexagon Head Bolt 6
4 GBT97.1-16-A0P Plain Washer 6
5 GBT93-16-A0P Standard Spring Washer 6
6 GBT802-M16-6 Compound Cap Nut 6
7 TS04461012010K Safety Frame Weldment 1
8 TS04461012012K Ec Identification Nameplate 1
9 GBT12618-3X15 Mushroom Head Break Mandrel Blind Rivet 2
