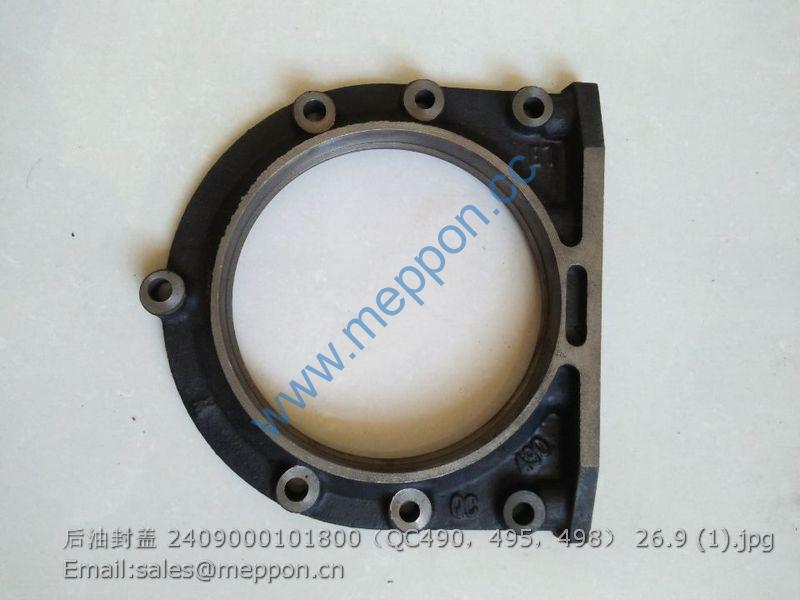

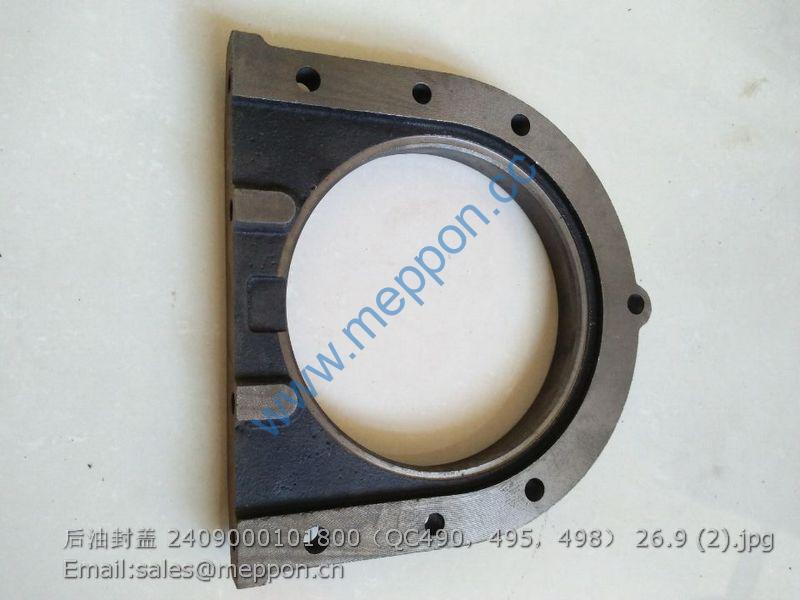

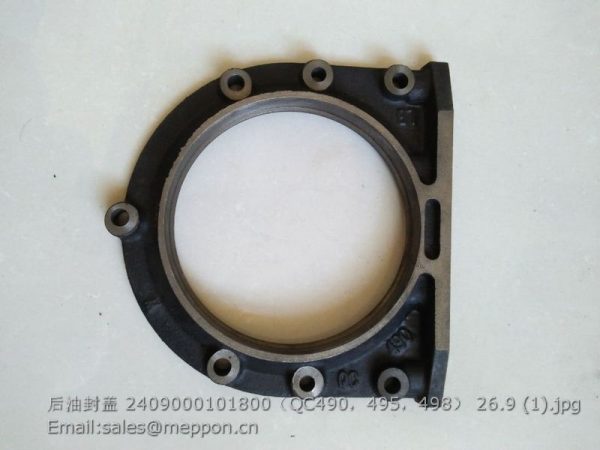

2409000101800 QC490 QC495 QC498 QC490Q(DI)-01018 REAR OIL SEAL COVER

TS04452010000 Floor Assembly 1
1 TS06452014200 Right Handle 1
2 TS04452010001 Floor Welding Assembly 1
3 TS06451019003 Processing Hole Plug Cover 3 1
4 TS06455013000 Rear Mudguard Fixing Gasket 2
5 TS06451019001 Processing Hole Plug Cover 1 1
6 TS06452014100 Left Handle 1
7 TS06451019004 Processing Hole Plug Cover 4 1
8 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 2
9 GBT93-6-A0P Standard Spring Washer 2
10 TS04452015200 Right Rearview Mirror Assembly 1
11 TA700.452B-06 Rubber Washer 6
12 TS04452013200 Right Front Windshield 1
13 TA700.452B-03 Rubber Washer 7
14 TA700.452B-02 Plastic Cast Nut 6
15 TS04452013100 Left Front Windshield 1
16 TS04452016000 Front Wall Seal Strip 1
17 GBT96.1-8-A0P Large Washer 4
18 GBT93-8-A0P Standard Spring Washer 4
19 GBT6170-M8-8-A2L Hexagon Nut , Style 1 4
20 GBT93-5-A0P Standard Spring Washer 6
21 GBT818-M5X16-4.8-A2L Cross Recessed Pan Head Screw 6

TS04452010000 Floor Assembly 1
TS04452010001 Floor Welding Assembly 1
1 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 13
2 GBT93-6-A0P Standard Spring Washer 17
3 TS04452011150 Central Electric Box Bracket Weldment 1
4 TS04452011030 Rear Connecting Board Weldment 2
5 GBT97.1-8-A0P Plain Washer 8
6 GBT93-8-A0P Standard Spring Washer 8
7 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 6
8 GBT6170-M8-8-A2L Hexagon Nut, Style 1 4
9 TS04452011000 Floor Body Weldment 1
10 TS04451012001 Gearbox Inspection Window Cover Plate 1
11 GBT5782-M6X40-8.8-A2L Hexagon Head Bolt 4
12 TS04452011210 Position Lamp Bracket Right Pieces Weldment 1
13 GBT97.1-6-A0P Plain Washer 4
14 GBT6170-M6-8-A2L Hexagon Nut, Style 1 4
15 TB550.452H-24 Rear Floor Cover 1
16 TS04452011190 Position Lamp Bracket Left Pieces Weldment 1
17 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
18 TS04451012114 Handbrake Cable Fixing Bracket 1

TS04452010000 Floor Assembly 1
1 TS04451017000 Left Boarding Ladder Assembly 1
1.1 GBT5782-M10X60-8.8-A2L Hexagon Head Bolt 1
1.2 GBT95-10-A0P Plain Washer 5
1.3 GBT93-10-A0P Standard Spring Washer 4
1.4 GBT6170-M10-8-A3L Hex Nut, Style 1 1
1.5 GBT5782-M10X55-8.8-A2L Hexagon Head Bolt 3
1.6 TS04451017100 Left Boarding Ladder Weldment 1
1.7 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 8
1.8 GBT97.1-8-A0P Plain Washer 16
1.9 TS04451017107 Rope Ladder Hanging Plate 2
1.10 GBT93-8-A0P Standard Spring Washer 8
1.11 GBT6170-M8-10-A2L Hex Nut, Style 1 8
1.12 TS04451017106 First Step Pedal Weldment 1
2 TS04451017301 Boarding Ladder Support Seat 2

TS04453020000 Upholstery Assembly 1
1 TS06453020001 Plastic Buckle Bl033 3
2 TS04453023300 Rear Wall Trimming 1
3 GBT818-M6X20-4.8-A2L Cross Recessed Pan Head Screw 7
4 GBT93-6-A3L Standard Spring Washer 7
5 GBT97.1-6-A3L Plain Washer 7
6 Q69208 Plastic Cotter Pin 7
7 TS04453022100 Middle Floor Cushion 1
8 TS04453023701 Parking Brake Shield 1
9 TS04453022000 Floor Cushion 1

TS04454010000 Control Cover Plate Assembly 1
1 GBT818-M6X20-4.8-A2L Cross Recessed Pan Head Screw 8
2 GBT93-6-A3L Standard Spring Washer 8
3 GBT97.1-6-A3L Plain Washer 8
4 TS04454010001 Control Cover Plate 1
5 TS04454010002 Electric Box Cover 1
